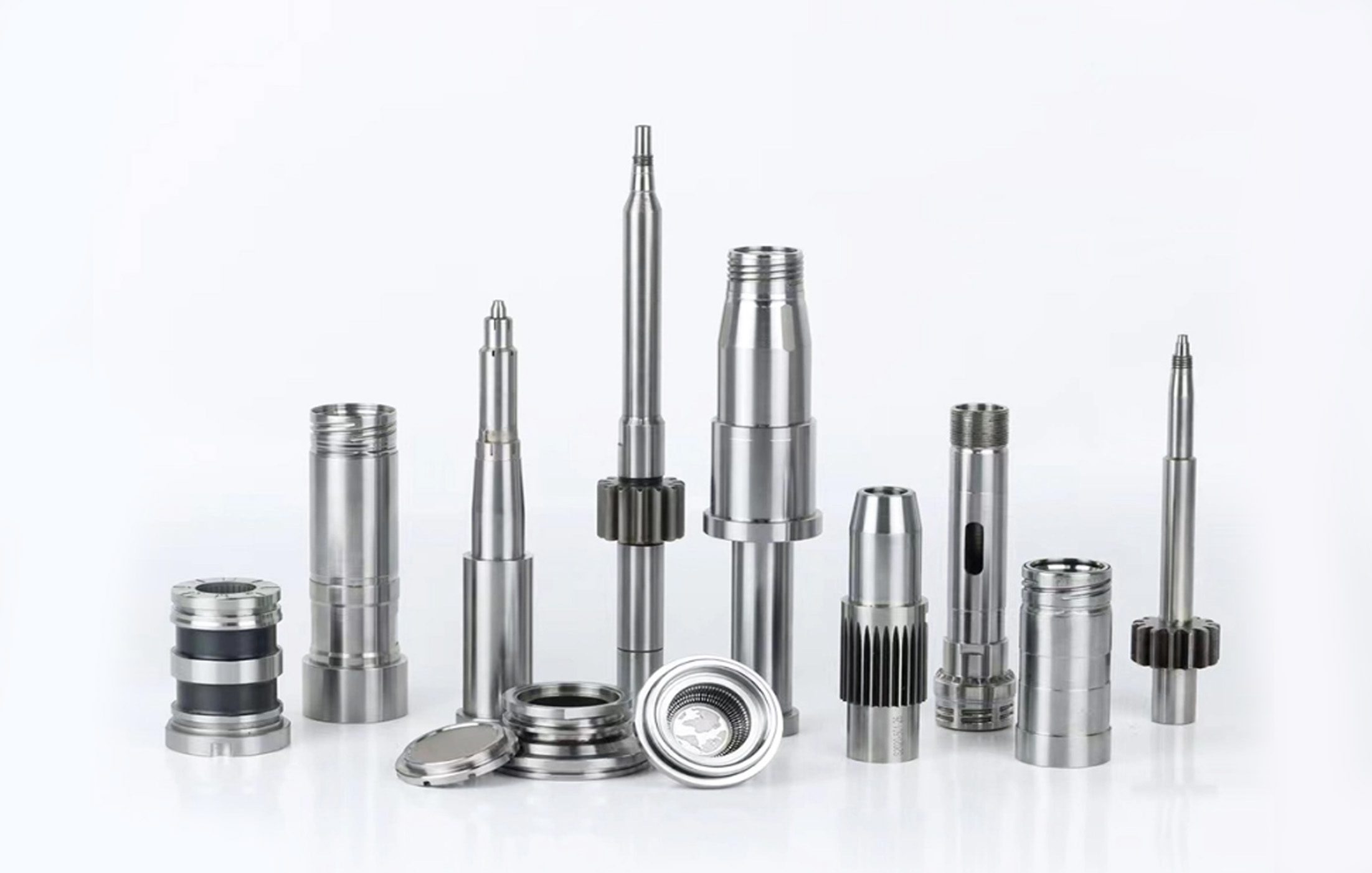

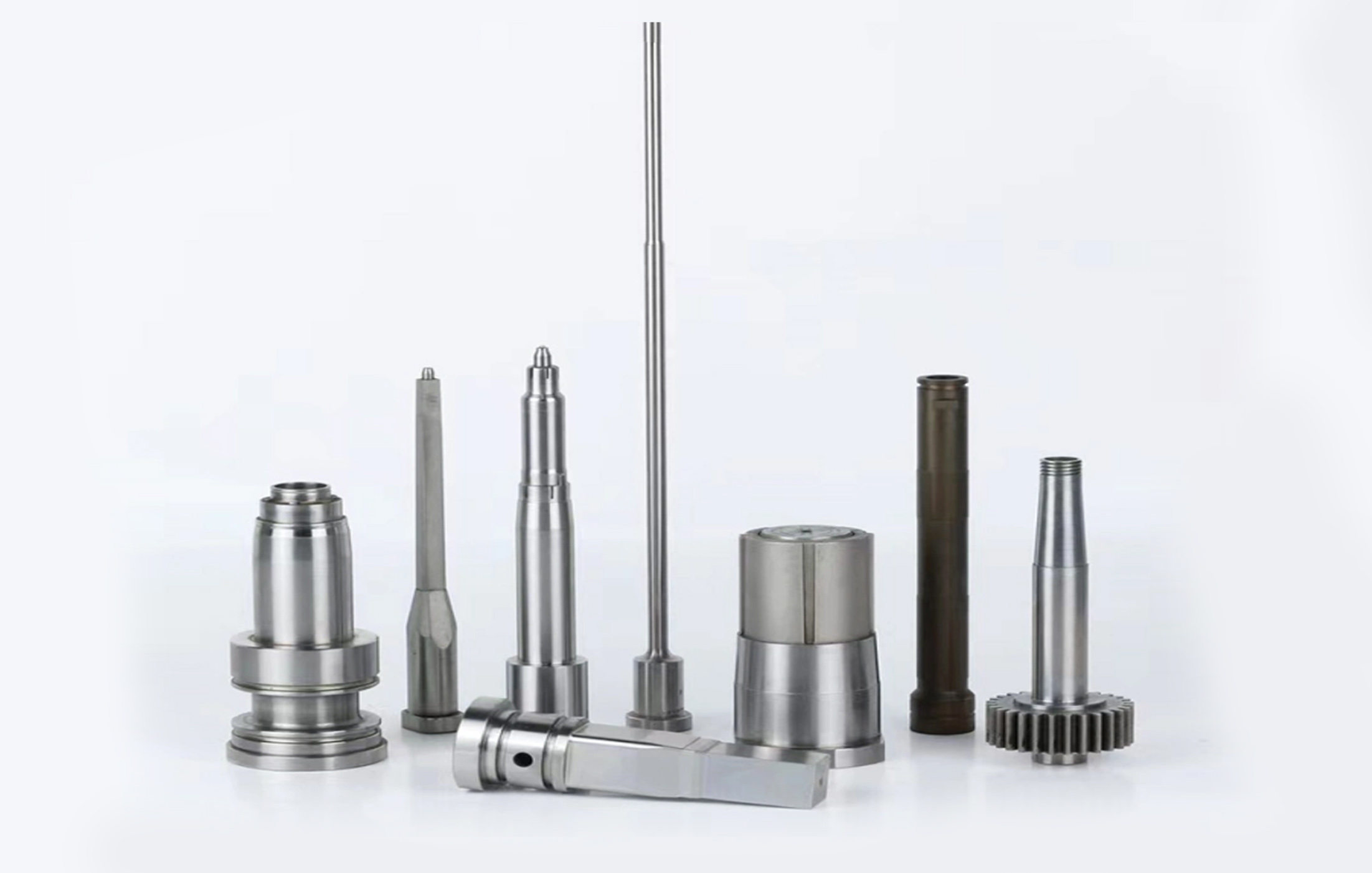

lathe machining parts | |
Product Name | lathe machining parts |
Brand Name | Fair Shine |
Place of Origin | Dongguan, Guangdong, China |
Specification | Customized on Request |
Customization | Material, size, shape, convex and concave marking, coating, laser engraving mark and packing are all customizable. |
Product Material | Carbide.ASP23 Vanadis.CPMRTXM4.SKD11SKD61HSSA2M2D2SUJ2.S45C.ect |
Standard | DIN ANSI BS JIS |
Tolerance | ±0.002mm |
Surface Treatment | TiCNTiN,Aitain,Ticrnnitriding Black oxygened Black coating etc available |
Polishness | Close to Ra0.2 Hardness Depends on material(HRC60~94) |
Hardness | Depends on material(HRC60~94) |
Shaping Mode | Grinding, wire cutting, EDM, cnc machining, cnc turning, cnc Milling |
Application | Machinery Parts and Molds |
Dreams bloom because of persistence, and quality becomes outstanding because of concentration!.
Since its establishment in 2013, Dongguan Huixiang Mold Technology Co., Ltd. has been focusing on providing customers with comprehensive solutions for precision mold accessories, and specializes in precision mold cores, cavities, complex inserts, carbide products, etc. The manufacturing of non-standard spare parts is widely used in industries such as cosmetics/medical packaging, auto parts, hardware and plastics, precision automation machinery, and lithium batteries.

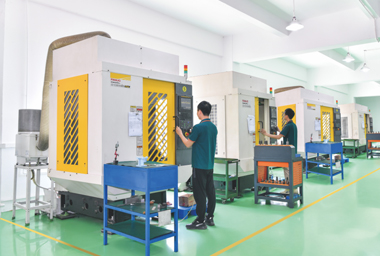

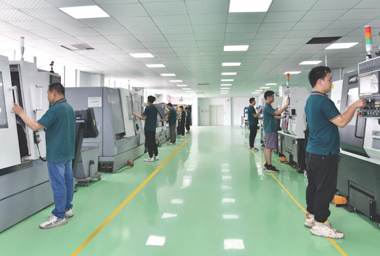

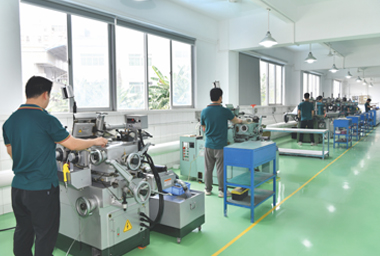

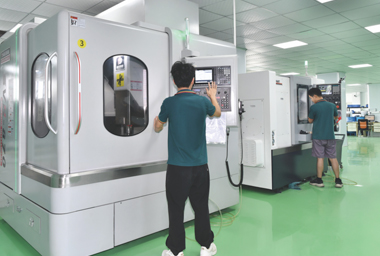

After more than ten years of continuous innovation and progress, Huixiang Mold Technology Co., Ltd. has mature manufacturing processes and production capabilities, which can meet customers' customized needs for non-standard precision spare parts products of different shapes, different materials, and different industry applications. Since its establishment, the company has introduced advanced production equipment, including Western Japanese slow wire cutting machines, Japanese Sodick mirror discharge, Taiwan high-precision coreless grinders and inner/outer diameter grinders, etc. The processing accuracy of spare parts can reach up to +-0.001 mm tolerance range.
1. Pen making/cosmetics/packaging products: pen model refills/pen cap accessories/pen refill thread inserts/lipstick series/spray molds;
2. Medical packaging equipment products: syringe core/syringe core (combination (pieces)/test tube core/medical packaging bottle cap screw core/drawing cover core and push plate cover; front and rear mold cores such as upper and lower caps of mascara;
3. Optoelectronic/digital electronic products: precision optoelectronic shaft/precision insert Sub/core/busting/precision positioning, etc., the accuracy tolerance is generally controlled within 0.002-0.005, all with test reports for customer inspection;
4. Home appliances, automotive machinery products: self-lubricating wear-resistant blocks (high-strength brass Add graphite)/No oil self-lubricating guide bushing, movable core assembly (inclined top seat)/guide column assistant/positioning column, etc.;
5. Bushings, die inserts, lower molds, CNC Customized standard and non-standard precision stamping mold accessories such as concave molds, special-shaped bushings, contour sleeves, floating pins, cross pin floating pins, guide lifting pins, tungsten steel punches, etc.; .
6. Precision stamping mold accessories: non-standard punch needles, punch heads, punch needles, tungsten Steel punch, CNC punch, carbide punch, ASP-23 punch, powder high-speed steel punch, SKH51 punch, SKD11 punch, DC53 punch, double-pin punch, double-pin special-shaped punch, Customized guide punches, guide pins, turning punches, forming punches, elliptical punches, square punches, hexagonal punches, special-shaped punches, etc.; .
7. Guide pins, positioning pins, stoppers Standard and non-standard customization of high columns, limit columns, etc.;
8 . Guide post guide bushing, GP auxiliary guide post, GP auxiliary guide bushing, SRP ball guide post guide bush, SGP sliding guide post guide bush, discharge plate guide post guide bush, TRP detachable guide post guide bush, independent guide post , non-standard guide posts and bushings and other cold stamping mold accessories;

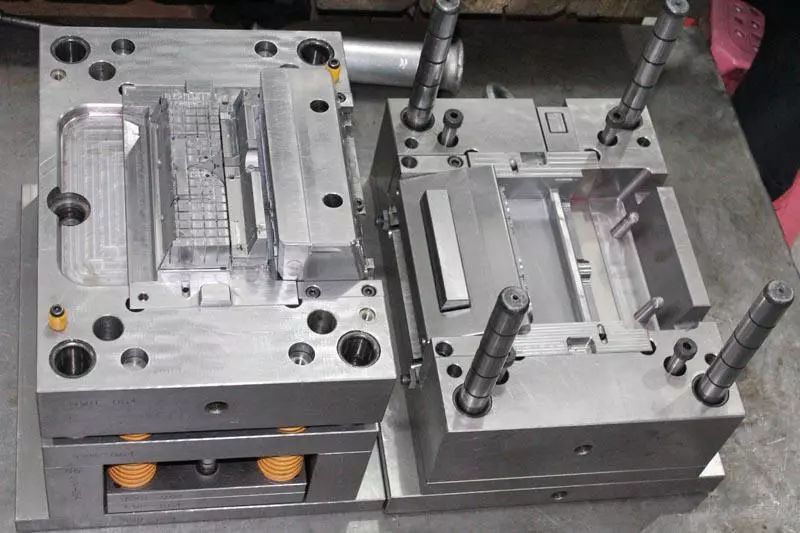

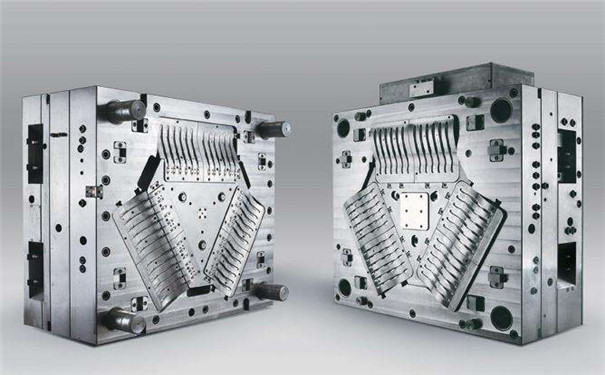

High-precision mold for automobile motor base: core support for automobile manufacturing
In today's highly developed automotive industry, high-precision molds for automotive motor bases are undoubtedly a crucial component. They are like the cornerstone of precision, supporting the entire automotive manufacturing edifice.
1. High precision
High precision is the primary feature of high-precision molds for automotive motor bases. Its design and manufacturing process can be described as an ultimate pursuit of precision. Every tiny dimension, every subtle curve, every delicate structure must be measured and crafted with micron-level precision. From the initial design stage of the mold, engineers use advanced computer-aided design software to conduct countless simulations and optimizations to ensure that the shape and size of the mold are exactly the same as the requirements of the automotive motor base. In the manufacturing process, the most advanced CNC processing equipment and ultra-high-precision measuring instruments are used to finely process and strictly inspect each mold component. This high-precision mold can produce automotive motor bases with precise dimensions and extremely small tolerances, providing precise positioning and support for the installation and operation of the motor, thus ensuring the stable performance of the motor.
2. High quality
High quality is the constant pursuit of high-precision molds for automotive motor bases. In the selection of materials, only high-quality steel with high strength, wear resistance, high temperature resistance and good toughness that has been strictly screened and inspected is used. These materials are not only able to withstand long-term, high-intensity production use, but also maintain stable performance in extreme working environments. During the manufacturing process, strict process flow and quality control standards are followed, and each process is carefully operated and strictly controlled by professional and technical personnel. From the blank forging and heat treatment of the mold to the final finishing and surface treatment, every link is dedicated to improving the quality of the mold to the extreme. High-quality molds can not only produce beautiful, flawless automotive motor bases, but more importantly, ensure the intrinsic quality of the base, giving it excellent mechanical properties and long service life.
3. High security
High safety is an important factor that cannot be ignored in the design and manufacturing of high-precision molds for automotive motor bases. The structure of the mold must be carefully designed to withstand huge pressure and impact to ensure that dangerous situations such as breakage and deformation will not occur during the production process. At the same time, the surface treatment and lubrication design of the mold are also crucial, which can effectively prevent adhesion and strain of workpieces during the production process and ensure the safety of operators. In addition, the safety protection device and emergency braking system of the mold are also indispensable, which can quickly stop production in an emergency and avoid accidents.
4. High efficiency and high reliability
High efficiency is the outstanding advantage of high-precision molds for automotive motor bases. By optimizing the structural design and cooling system of the mold, the production cycle can be significantly shortened and production efficiency improved. The application of advanced multi-station continuous stamping molds and rapid mold change technology makes the production process smoother and faster. The efficiency of the mold is not only reflected in the production speed of a single product, but also in the stability and consistency during mass production.
High reliability is the core requirement for high-precision molds for automotive motor bases. During the long-term operation of the car, the motor base needs to withstand various complex forces and environmental conditions. Therefore, the base produced by the mold must have extremely high reliability and be able to maintain stable performance under harsh working conditions without fatigue, breakage and other failures. In order to achieve this goal, during the mold development and manufacturing process, a large number of reliability tests and simulation experiments are conducted to accurately predict and evaluate the life and fatigue strength of the mold. At the same time, we have established a complete quality tracking and after-sales service system, collected and processed user feedback in a timely manner, and continuously improved and optimized the design and manufacturing process of the mold to ensure that the high reliability of the mold can be maintained for a long time.
5. Sustainable Development and Innovation
Against the background of the global advocacy of sustainable development, high-precision molds for automotive motor bases are also constantly developing in the direction of green, environmental protection, and energy saving. For example, by optimizing the mold structure and production process, we can reduce the waste of raw materials and energy consumption. At the same time, we actively explore new materials and manufacturing technologies to reduce the impact on the environment. In addition, innovation is also an important driving force for the development of high-precision molds for automotive motor bases. Continuously introduce new design concepts, intelligent technologies and digital management methods to improve the performance and production efficiency of molds and meet the growing needs and challenges of the automotive industry.
Our Services
1. Specialized in precision mold part ,inquiries will get highly attention and be prompt response.(within 24 hours).
2. Advanced facilities and experienced engineers, rich experience in mold parts.
3. Guaranteed quality, superior material quality compared to all other.
4. Customer oriented, efficient solution to control the cost for our client.
5. One-stop service, any questions can be solved at the first time by us.
6. Each part has been got 100% inspection before shipment.
Our adavanges
1. Clean and tidy workshop.
2.Strick and serious manangement, skilled and expericenced technicians.
3. Various raw material(imported and Chinese) to meet different needs of customers.

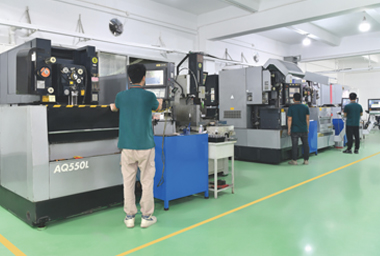

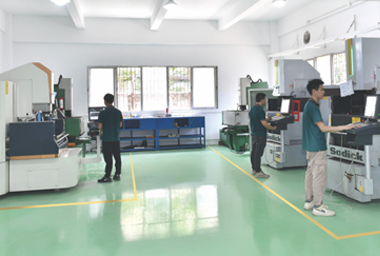

4.Equipment of high pricision.( Surface grinding,Sodick Wire-cutting.drilling machine).
5.The QC go along with all the production processes in our factory.
6. You can use English or Japanese for cummunication
Payment Terms
T/T,Paypal,Western Union,50% deposit, balance before shipment is available
Package:PE bag with anticorrosive oil,foaming film with carton,or wooden box according to customer's requirement.
Delivery:Delivery time is usually 7-15 working days for type of ejector pin,specific time is according to quantity.
Shipping:We ship using express such as DHL, UPS, FEDEX etc. or according
to customer's requirement . It takes about 3-5 days to arrive your front
door, and proof of shippments are provided with a shipping or tracking
number. And we ship by occean shippment for larger quantity items,
it will be economic for customers.
