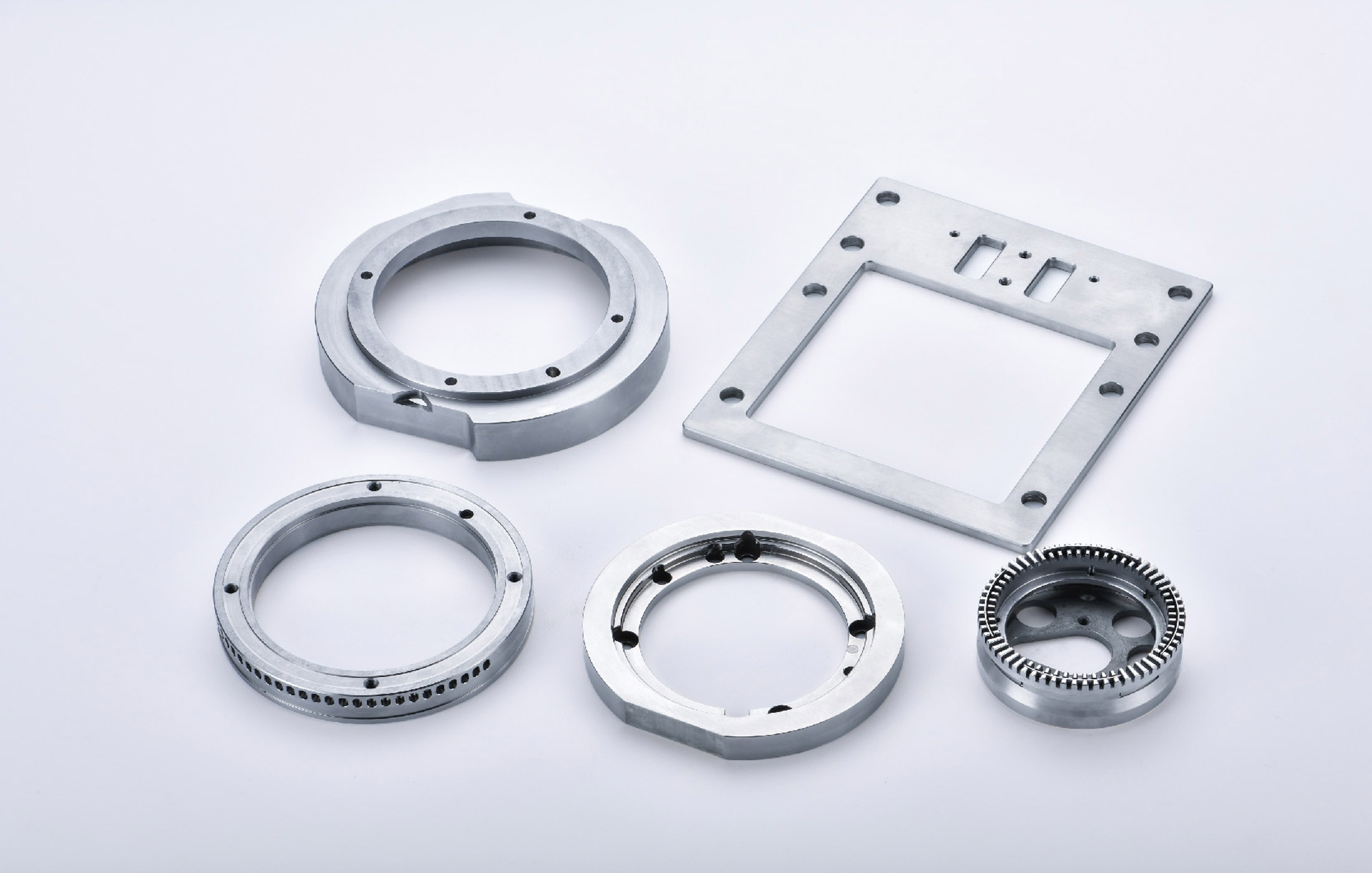

Hardware Mold Parts | |
Product Name产 | Hardware Mold Parts |
Brand Name品 | Fair Shine |
Place of Origin | Dongguan, Guangdong, China |
Specification | Customized on Request |
Customization | Material, size, shape, convex and concave marking, coating, laser engraving mark and packing are all customizable. |
Product Material | Carbide.ASP23 Vanadis.CPMRTXM4.SKD11SKD61HSSA2M2D2SUJ2.S45C.ect |
Standard | DIN ANSI BS JIS |
Tolerance | ±0.002mm |
Surface Treatment | TiCNTiN,Aitain,Ticrnnitriding Black oxygened Black coating etc available |
Polishness | Close to Ra0.2 Hardness Depends on material(HRC60~94) |
Hardness | Depends on material(HRC60~94) |

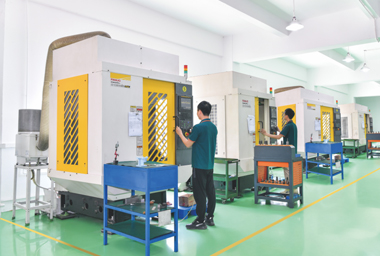

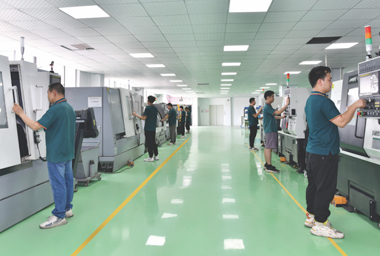

Shaping Mode | Grinding, wire cutting, EDM, cnc machining, cnc turning, cnc Milling |
Application | Machinery Parts and Molds |

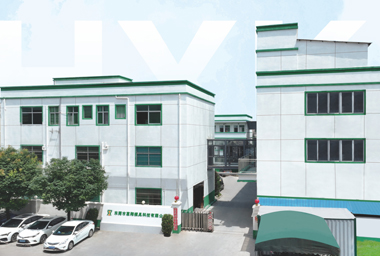

Dongguan Huixiang Mold Technology Co., Ltd. was established in 2013. It is a manufacturing factory covering an area of 5,000 square meters integrating production and sales.
Mainly produces: SKD61, SKD11, DC53, SKH51, SKH-9, ASP23, M35, M42, tungsten steel T-type punch, A-type punch, three-level punch, parent punch, tooth punch, bevel punch Punch, guide punch, special-shaped punch (square, hexagonal, elliptical), needle gauge, contour screws, contour sleeves, positioning pins, lifting pins, round auxiliary devices, guide posts and bushings, support pins, flat Ejectors, sleeves, PIN pins, terminal mold inserts, connector mold inserts, hardware/plastic mold precision mold cores and other customized special shapes, automobile inspection tools, etc.
The main materials are imported from Germany and Sweden, and the performance is stable. The heat treatment is supported by professional manufacturers, and is equipped with advanced production equipment and a group of experienced professional and technical personnel to make the product's accuracy, performance, and service life even better. One chip, the service is more convenient! Especially in terms of various multi-cavity injection molds, by producing various precision inspection and metallurgy tools to match existing inspection equipment, the various types of chips produced by our company have uniform sizes and strong interchangeability, and have won unanimous praise from our customers.
1. Pen making/cosmetics/packaging products: pen model refills/pen cap accessories/pen refill thread inserts/lipstick series/spray molds;
2. Medical packaging equipment products: syringe core/syringe core (combination (pieces)/test tube core/medical packaging bottle cap screw core/drawing cover core and push plate cover; front and rear mold cores such as upper and lower caps of mascara;
3. Optoelectronic/digital electronic products: precision optoelectronic shaft/precision insert Sub/core/busting/precision positioning, etc., the accuracy tolerance is generally controlled within 0.002-0.005, all with test reports for customer inspection;
4. Home appliances, automotive machinery products: self-lubricating wear-resistant blocks (high-strength brass Add graphite)/No oil self-lubricating guide bushing, movable core assembly (inclined top seat)/guide column assistant/positioning column, etc.;
5. Precision stamping mold accessories: non-standard punch needles, punch heads, punch needles, tungsten Steel punch, CNC punch, carbide punch, ASP-23 punch, powder high-speed steel punch, SKH51 punch, SKD11 punch, DC53 punch, double-pin punch, double-pin special-shaped punch, Customized guide punches, guide pins, turning punches, forming punches, elliptical punches, square punches, hexagonal punches, special-shaped punches, etc.;
6. Bushings, die inserts, lower molds, CNC Customized standard and non-standard precision stamping mold accessories such as concave molds, special-shaped bushings, contour sleeves, floating pins, cross pin floating pins, guide lifting pins, tungsten steel punches, etc.;
7. Guide pins, positioning pins, stoppers Standard and non-standard customization of high columns, limit columns, etc.;
8. Non-standard customization of SKH51 thimbles, SKD61 thimbles, supporting pins, flat thimbles, shooting pins, cylinder pins, push tubes, imported material thimbles and cylinder cylinders;
Grinding is a process that is often encountered during long-term use of metal mold accessories. The abrasive particles in the grinding tool will complete the surface of the workpiece during the grinding process. During the process of the grinding tool moving relative to the workpiece, the rust on the surface of the hardware mold accessories and damaged parts will gradually flatten and become smooth. The service life of metal mold parts will be longer after grinding and processing, and the processing effect will be more significant. So what should we pay attention to when grinding high-quality hardware mold parts?
1. Pay attention to the time sequence of grinding abrasives
Even a high-quality hardware mold accessories require us to use different abrasives in a certain order of the company when fully grinding, which must be from large particles to small particles, from coarse abrasives to fine abrasives. And it can be done in order to avoid the phenomenon of "relief" for students.
2. Pay attention to the correct use of abrasives
In order to avoid scratches on the surface of metal mold parts, the same tool can only use abrasives of the same particle size. The surface of the metal mold parts must be carefully cleaned before changing the particle size to avoid residual large-grained abrasives when the parts are damaged in the next process.
3. pay attention to the correct operation of grinding of different particle sizes
When an efficient professional grinder grinding precision mold parts, when changing the next grinding particle size, the grinding direction will be about 30 degrees from the last grinding direction, as it is unlikely to appear scars. If scars appear during the conversion operation, they should be completely trimmed to remove the pits.
As the core component of industrial manufacturing, hardware mold accessories have a wide range of application scenarios covering multiple fields. The following is a detailed analysis of the main application scenarios and technical characteristics:
1. Automobile manufacturing industry
Typical applications: body covering parts (doors, hoods), chassis parts, high-strength steel stamping parts.
Key accessories:
punch and die: process 1500MPa ultra-high strength steel, using tungsten steel or powder metallurgy materials. Guide column guide sleeve: Forced cooling system should deal with high temperatures generated by continuous stamping.
Technical requirements: The mold life needs to reach more than one million times, and the mold change can be achieved quickly with the automation line.
2. Consumer Electronics Industry
Typical applications: mobile phone midframe, notebook case, connector terminal.
Key accessories:
Micro punch (diameter ≤0.2mm): Processing precision hole position.
Inclined wedge and thimble mechanism: achieve complex bending and demolding.
Technical requirements: Surface finish RA≤0.2μm, mold accuracy ±0.005mm.
3. Home appliance manufacturing
Typical applications: washing machine drum, refrigerator door panel, air conditioning shell.
Key accessories:
Large composite mold: integrated punching, flanging, and forming multiple processes.
Nitrogen spring: Replaces traditional metal springs to improve unloading stability.
Technical requirements: Support thick plate (above 3mm) stamping to reduce mold debugging time.
4. Medical devices and precision instruments
Typical applications: orthopedic stents, minimally invasive surgical instruments, micro sensor housings.
Key accessories:
Superhard material punch (hardness HRC70+): processed titanium alloy or stainless steel.
Multi-station level mold advancement: realize continuous production of micro parts (<1mm).>
Technical requirements: Comply with ISO 13485 medical certification, and the materials are traceable.
5. Packaging and food and beverage
Typical applications: cans, bottle caps, food trays.
Key accessories:
High-speed die: 800-1200 pieces are produced per minute, requiring wear-resistant coating (TiCN).
Molding die: textured design (not slip or brand identity).
Technical requirements: Mold materials must pass FDA food contact certification.
6. New energy and environmental protection fields
Typical applications: lithium battery electrode plate, photovoltaic bracket, hydrogen energy storage and transportation components.
Key accessories:
Corrosion-resistant mold: Beryllium copper or titanium alloy is used to deal with electrolyte corrosion. Thermoforming mold: maintain dimensional stability at high temperature.
Technical requirements: Supports continuous stamping of large-size pole pieces (width ≥600mm).
7. Aerospace and National Defense
Typical applications: aircraft skin, missile shell, satellite structural parts.
Key accessories:
High temperature alloy mold: withstands molding temperatures above 800℃.
Complex surface machining: Five-axis linked CNC realizes turbine blade mold manufacturing.
Technical requirements: Comply with AS9100 aviation quality standards, material strength verification.
Future trends and application expansion
Customization and small-scale production: 3D printed mold accessories (such as accompanying cooling waterways) shorten delivery cycles.
Environmental protection and sustainability: bio-based material molds, recyclable spring components.
Intelligent integration: Sensor embedded accessories realize status monitoring and predictive maintenance. By adapting to the process needs of different industries, hardware mold accessories are promoting the manufacturing industry toward higher precision, higher efficiency and more sustainable directions.
Enterprises need to continue to pay attention to material innovation (such as carbon fiber reinforced molds) and digital technologies (such as AI design optimization) to consolidate market competitiveness.
Our Services
1. Specialized in precision mold part ,inquiries will get highly attention and be prompt response.(within 24 hours).
2. Advanced facilities and experienced engineers, rich experience in mold parts.
3. Guaranteed quality, superior material quality compared to all other.
4. Customer oriented, efficient solution to control the cost for our client.
5. One-stop service, any questions can be solved at the first time by us.
6. Each part has been got 100% inspection before shipment.
Our adavanges

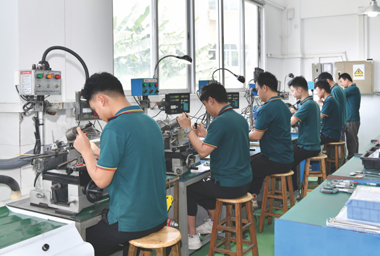

1. Clean and tidy workshop.
2.Strick and serious manangement, skilled and expericenced technicians.
3. Various raw material(imported and Chinese) to meet different needs of customers.

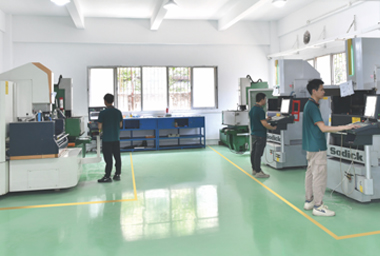

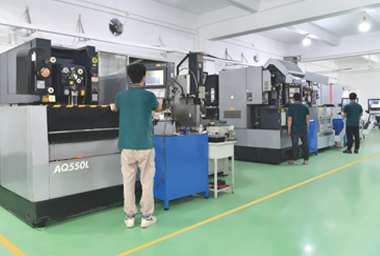

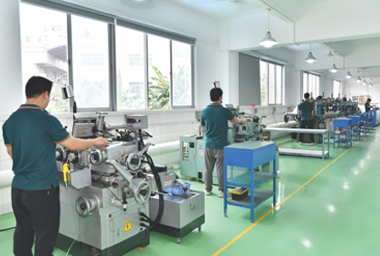

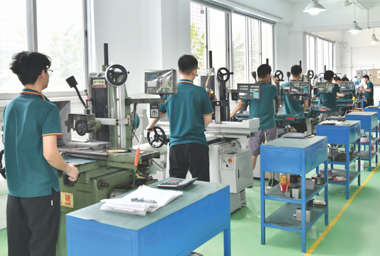

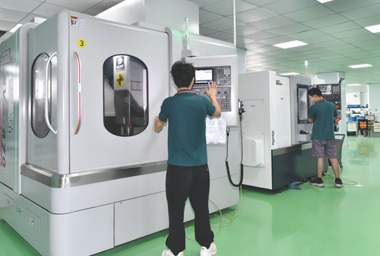

4.Equipment of high pricision.( Surface grinding,Sodick Wire-cutting.drilling machine).

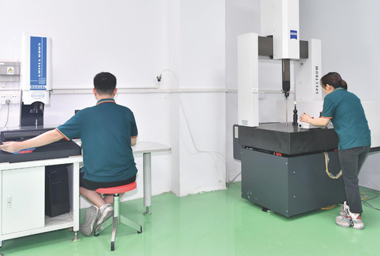

5.The QC go along with all the production processes in our factory.
6. You can use English or Japanese for cummunication
Payment Terms
T/T,Paypal,Western Union,50% deposit, balance before shipment is available
Package:PE bag with anticorrosive oil,foaming film with carton,or wooden box according to customer's requirement.
Delivery:Delivery time is usually 7-15 working days for type of ejector pin,specific time is according to quantity.
Shipping:We ship using express such as DHL, UPS, FEDEX etc. or according
to customer's requirement . It takes about 3-5 days to arrive your front
door, and proof of shippments are provided with a shipping or tracking
number. And we ship by occean shippment for larger quantity items,
it will be economic for customers.
