Rapid Prototyping Services for Medical Packaging Molds | |
Product Name | Medical Packaging Mold Parts |
Brand Name | Fair Shine |
Place of Origin | Dongguan, Guangdong, China |
Specification | Customized on Request |
Customization | Material, size, shape, convex and concave marking, coating, laser engraving mark and packing are all customizable. |
Product Material | Carbide.ASP23 Vanadis.CPMRTXM4.SKD11SKD61HSSA2M2D2SUJ2.S45C.ect |
Standard | DIN ANSI BS JIS |
Tolerance | ±0.002mm |
Surface Treatment | TiCNTiN,Aitain,Ticrnnitriding Black oxygened Black coating etc available |
Polishness | Close to Ra0.2 Hardness Depends on material(HRC50~64) |
Hardness | Depends on material(HRC50~64) |
Shaping Mode | Grinding, wire cutting, EDM, cnc machining, cnc turning, cnc Milling |
Application | Machinery Parts and Molds |

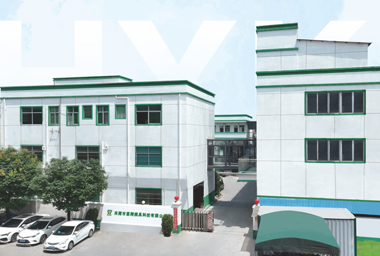

Dongguan Huixiang Mold Technology Co., Ltd. was established in 2013. It is located in the factory area at No. 12, Yuwumusong 4th Street, Dongcheng District, Dongguan. It covers an area of 5,000 square meters and undertakes various non-standard parts processing and customization.

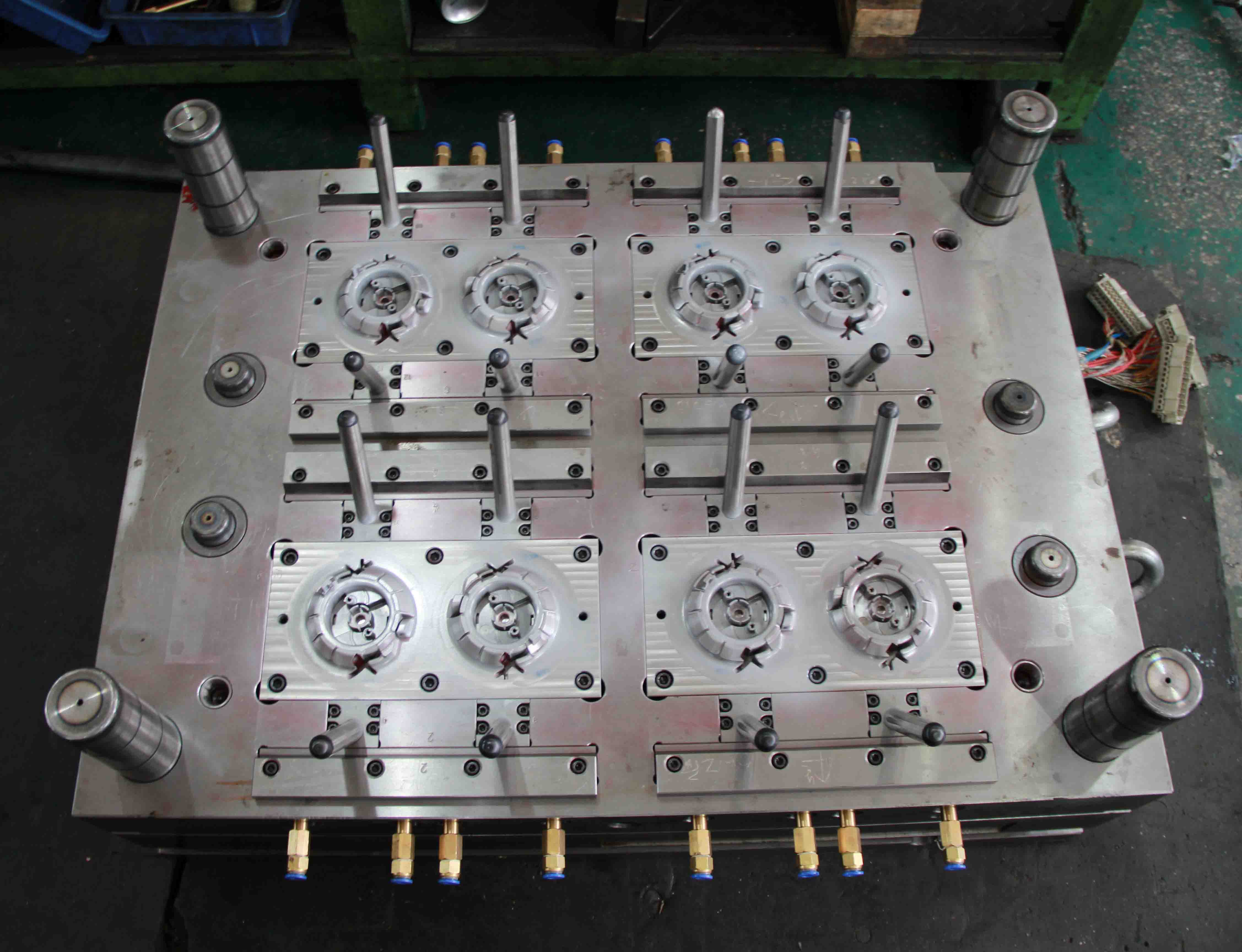

Plastic molds, metal stamping molds, die-casting molds, jigs and precision automation machinery auto parts and other fields.

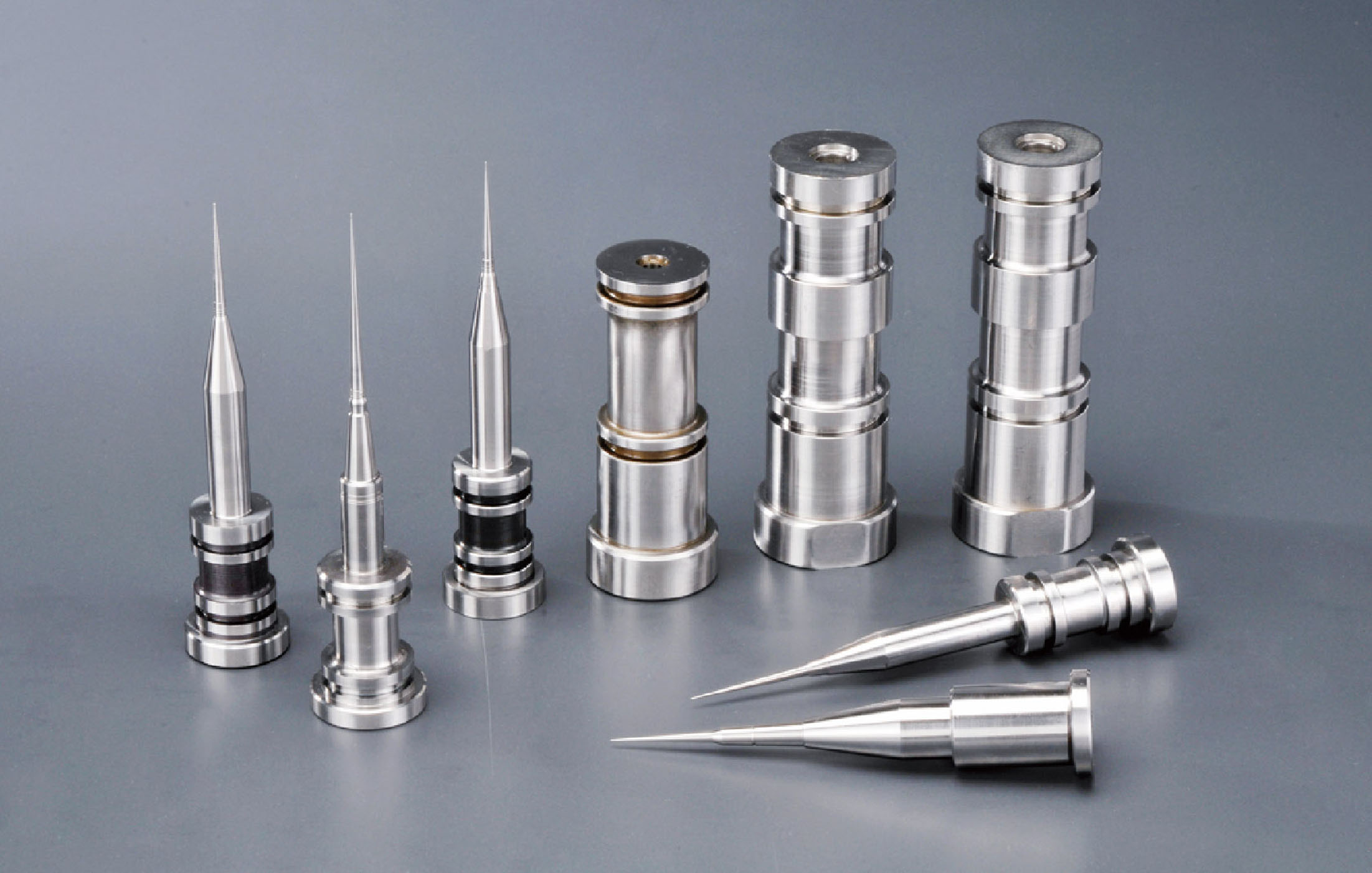

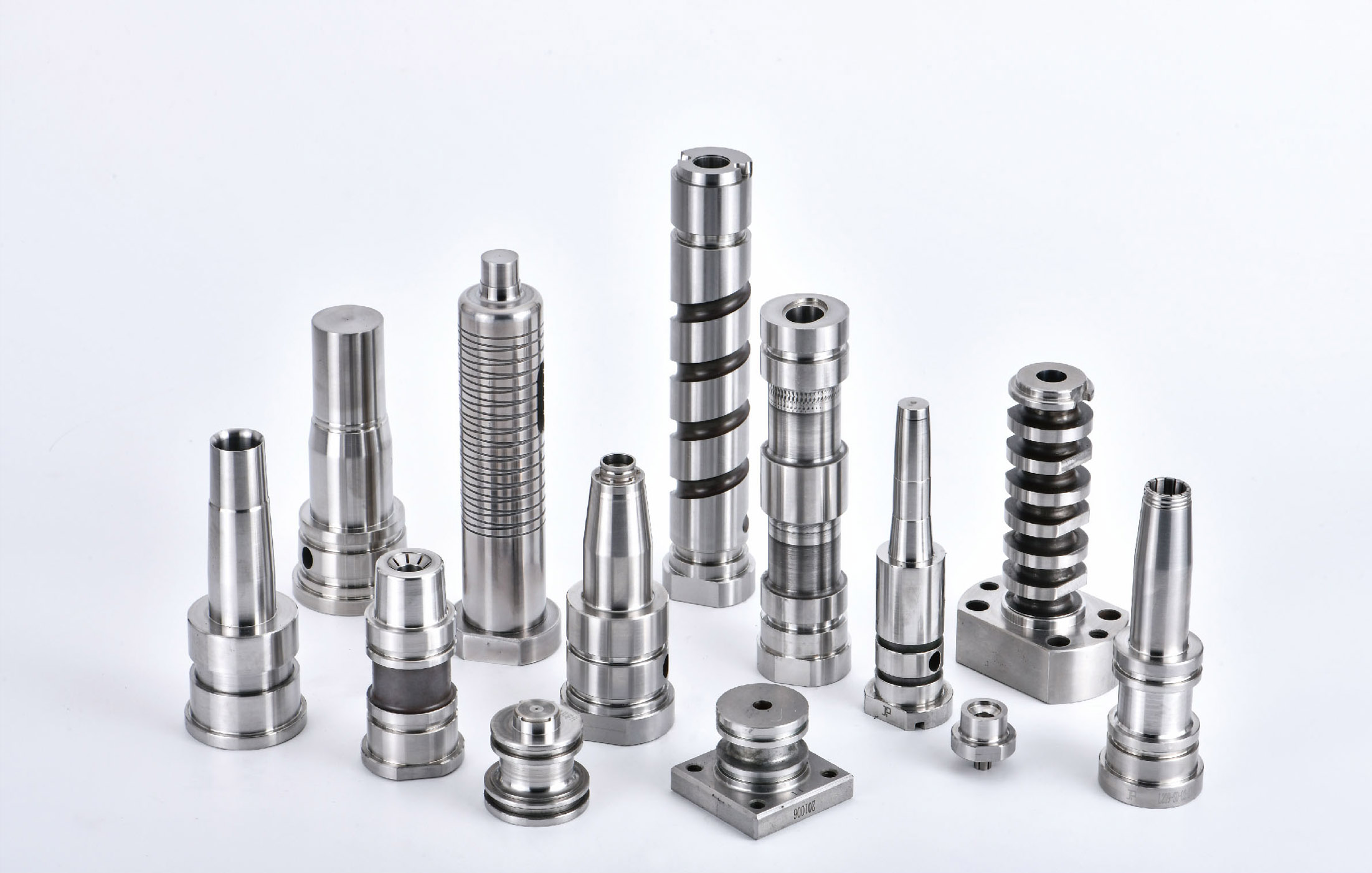

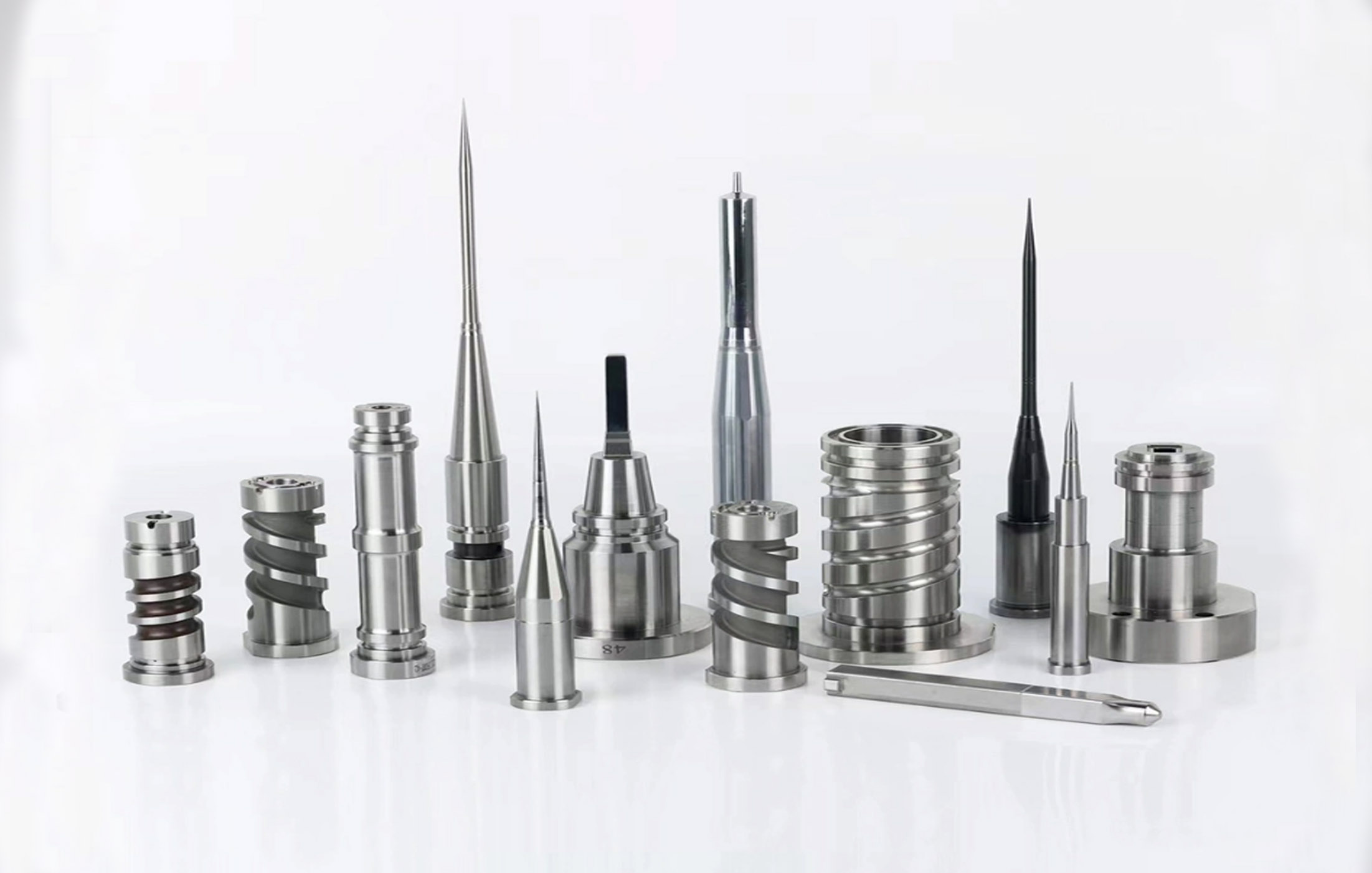

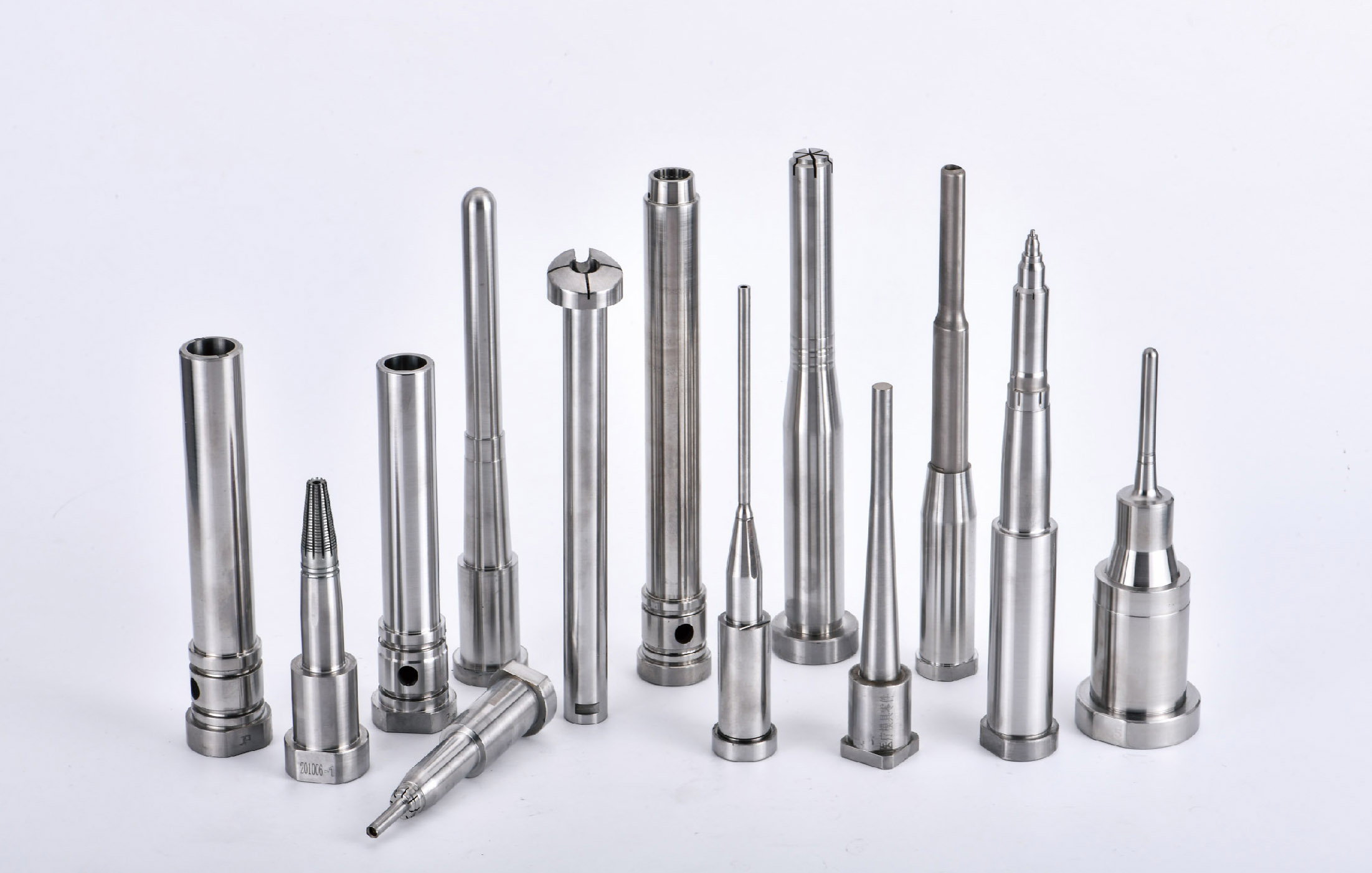

The main production includes: parent punches, forming punches, carbide die punches, SKH51 SKD11 punches, precision mold cores, mold cores, pen model cores, screw cores, precision screw inserts , non-standard cylinders, ejector pins, supporting pins, guide posts, guide bushes, insert pins, inserts, die, electrodes, non-standard and other non-standard mold parts.
1. Pen making/cosmetics/packaging products: pen model refills/pen cap accessories/pen refill thread inserts/lipstick series/spray molds;
2. Medical packaging equipment products: syringe core/syringe core (combination (pieces)/test tube core/medical packaging bottle cap screw core/drawing cover core and push plate cover; front and rear mold cores such as upper and lower caps of mascara;
3. Optoelectronic/digital electronic products: precision optoelectronic shaft/precision insert Sub/core/busting/precision positioning, etc., the accuracy tolerance is generally controlled within 0.002-0.005, all with test reports for customer inspection;
4. Home appliances, automotive machinery products: self-lubricating wear-resistant blocks (high-strength brass Add graphite)/No oil self-lubricating guide bushing, movable core assembly (inclined top seat)/guide column assistant/positioning column, etc.;
5. Non-standard customization of SKH51 thimbles, SKD61 thimbles, supporting pins, flat thimbles, shooting pins, cylinder pins, push tubes, imported material thimbles and cylinder cylinders;
6. Guide pins, positioning pins, stoppers Standard and non-standard customization of high columns, limit columns, etc.;
7 . Guide post guide bushing, GP auxiliary guide post, GP auxiliary guide bushing, SRP ball guide post guide bush, SGP sliding guide post guide bush, discharge plate guide post guide bush, TRP detachable guide post guide bush, independent guide post , non-standard guide posts and bushings and other cold stamping mold accessories;
8. Bushings, die inserts, lower molds, CNC Customized standard and non-standard precision stamping mold accessories such as concave molds, special-shaped bushings, contour sleeves, floating pins, cross pin floating pins, guide lifting pins, tungsten steel punches, etc.; .
There are significant differences between medical molds and ordinary molds, which are mainly reflected in material selection, manufacturing process, design requirements, application areas, and safety and reliability. The following is a detailed comparison of these two types of molds:
1. Material selection
Medical molds: Usually, materials that meet the standards of the medical industry, such as medical grade stainless steel, titanium alloy, medical grade plastic, etc. These materials not only have high strength and corrosion resistance, but must also meet the requirements of biocompatibility to ensure compatibility with human tissue.
Ordinary mold: The material selection range is wide, just select the appropriate material according to the specific application. Common materials include various metals, plastics, rubber, etc. These materials mainly meet basic performance requirements such as mechanical strength, wear resistance, and corrosion resistance.
2. Manufacturing process
Medical mold: The manufacturing process is more complex and fine. Common manufacturing processes include precision casting, injection molding, 3D printing technology, etc. These processes not only achieve high-precision manufacturing, but also improve production efficiency and product quality. In addition, medical mold manufacturing process also requires strict compliance with medical and health standards and specifications to ensure the sterility and safety of the product.
Ordinary mold: The manufacturing process is relatively simple, just choose the appropriate process according to the specific needs. Common manufacturing processes include stamping, forging, injection molding, etc. These processes mainly meet the basic shape and size requirements of the product.
3. Design requirements
Medical mold: The design requirements are higher, and it is necessary to consider the specific functions and shapes of medical devices to carry out accurate three-dimensional modeling and structural design. At the same time, it is also necessary to consider key elements such as the mold parting surface, gate position and exhaust system to ensure the dimensional accuracy and surface quality of the product. In addition, the design of medical molds needs to meet the regulations and standards of the medical industry to ensure the safety and reliability of the product.
Ordinary mold: The design is relatively simple and mainly designed according to product needs. The factors considered mainly include the shape, size, materials and production process of the product. There is no need to strictly comply with the regulations and standards of the medical industry during the design process.
4. Application fields
Medical molds: widely used in the medical industry production, such as trauma surgery, orthopedic surgery, orthopedics, neurosurgery and other clinical fields. They can be used for a variety of purposes such as fixing fractures, treating spinal deformities, assisting nerve regeneration, etc.
Ordinary mold: has a wide range of applications, covering many industries such as automobiles, electronics, home appliances, and toys. They are mainly used to manufacture a variety of parts and components to meet the needs of different industries.
5. Safety and reliability
Medical molds: The safety and reliability of user operations must be considered during the design and manufacturing process. The medical industry has strict specifications and standards for the design and manufacturing of molds to ensure the safety of patients and medical staff. In addition, medical molds need to undergo strict testing and certification to ensure that they comply with regulations and standards in the medical industry.
Ordinary molds: Although safety and reliability are also required to be considered, their requirements are relatively low compared to medical molds. Ordinary molds mainly meet the basic usage needs of products and do not strictly abide by the regulations and standards of the medical industry.
To sum up, there are significant differences between medical molds and ordinary molds in terms of material selection, manufacturing process, design requirements, application fields, and safety and reliability. These differences make medical molds have unique importance and application value in the production of medical industry.
Our adavanges

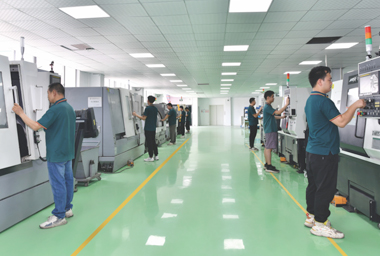

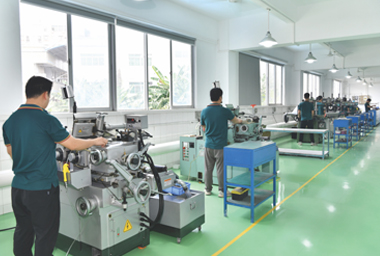

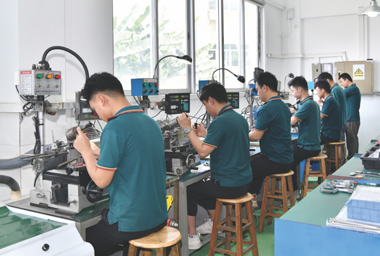

1. Clean and tidy workshop.
2.Strick and serious manangement, skilled and expericenced technicians.
3. Various raw material(imported and Chinese) to meet different needs of customers.

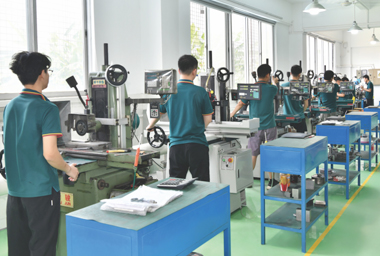

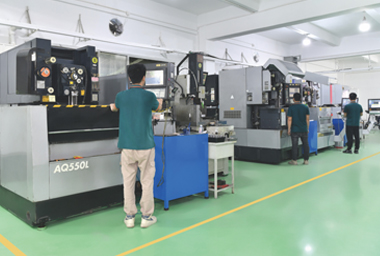

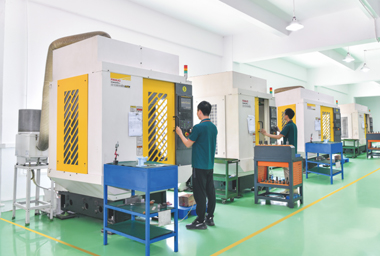

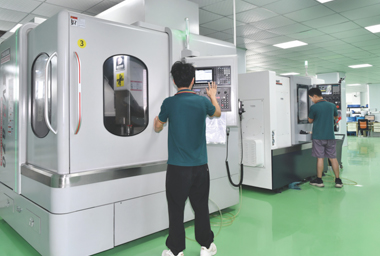

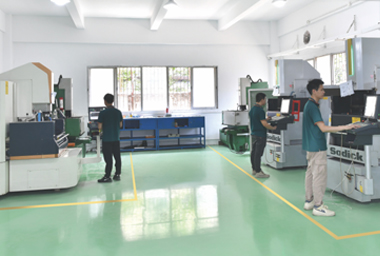

4.Equipment of high pricision.( Surface grinding,Sodick Wire-cutting.drilling machine).

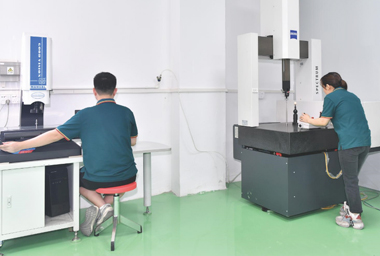

5.The QC go along with all the production processes in our factory.
6. You can use English or Japanese for cummunication
Our Services
1. Specialized in precision mold part ,inquiries will get highly attention and be prompt response.(within 24 hours).
2. Advanced facilities and experienced engineers, rich experience in mold parts.
3. Guaranteed quality, superior material quality compared to all other.
4. Customer oriented, efficient solution to control the cost for our client.
5. One-stop service, any questions can be solved at the first time by us.
6. Each part has been got 100% inspection before shipment.
Payment Terms
T/T,Paypal,Western Union,50% deposit, balance before shipment is available
Package:PE bag with anticorrosive oil,foaming film with carton,or wooden box according to customer's requirement.
Delivery:Delivery time is usually 7-15 working days for type of ejector pin,specific time is according to quantity.
Shipping:We ship using express such as DHL, UPS, FEDEX etc. or according
to customer's requirement . It takes about 3-5 days to arrive your front
door, and proof of shippments are provided with a shipping or tracking
number. And we ship by occean shippment for larger quantity items,
it will be economic for customers.
