Shot Volume Injection Molding

2024-07-13 14:22:44

What is Shot Volume Injection Molding?


1720852238344943

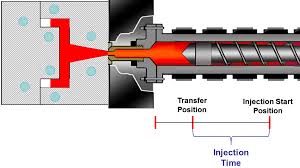

Shot Volume Injection Molding is a manufacturing process used to produce small to medium-sized plastic parts with high precision. It involves injecting molten plastic material into a mold cavity, where it cools and solidifies into the desired shape. The "shot volume" refers to the amount of material injected into the mold in a single cycle.


Principles of Shot Volume Injection Molding


1720852479165498

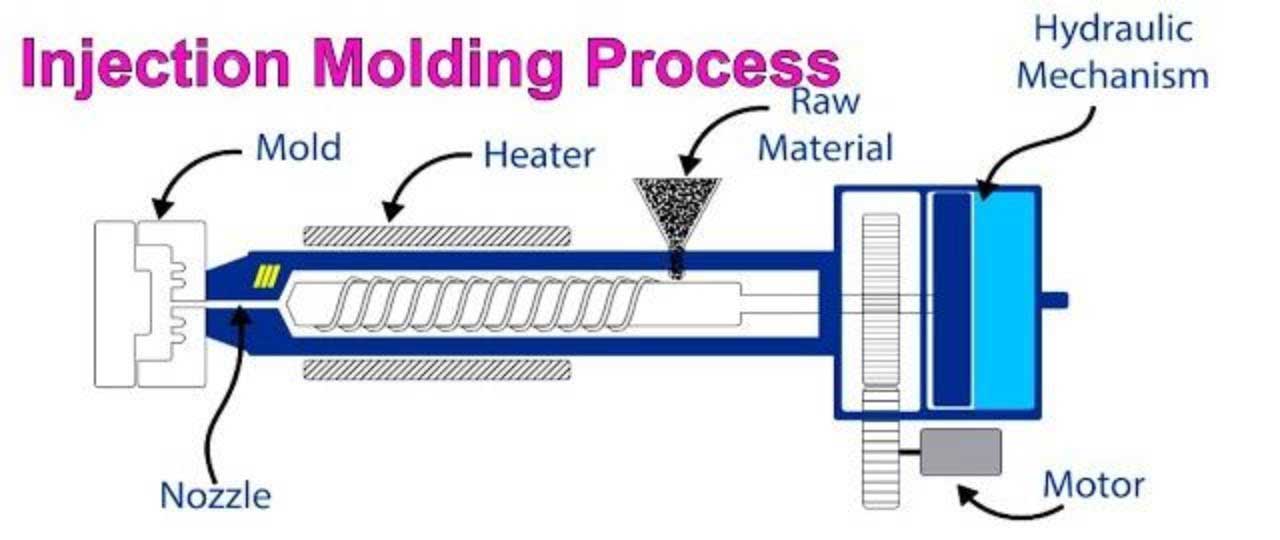

The process operates on several key principles:

Material Melting: Thermoplastic polymers are heated until they reach a molten state.

Injection: The molten plastic is injected into a pre-designed mold cavity under high pressure.

Cooling: Once inside the mold, the material cools and solidifies, taking the shape of the cavity.

Ejection: The solidified part is ejected fro


Shot Volume Injection Molding requires specialized machinery known as injection molding machines, which consist of the following components:

Injection Unit: Melts and injects the material into the mold.

Clamping Unit: Holds the mold halves together under pressure during injection and cooling.

Mold: Custom-designed cavities that shape the final product.

Control Systems: Advanced controls to manage temperature, pressure, and injection speed for consistent quality.

These machines come in various sizes and configurations, capable of handling different shot volumes and material types.


Shot Volume Injection Molding is versatile and used across numerous industries, including:


17208528474367391720852693200594


Automotive: Manufacturing of components like dashboards, bumpers, and interior trims.

Electronics: Production of housings, connectors, and intricate components.

Medical Devices: Precision parts such as syringes, diagnostic equipment, and surgical tools.

Consumer Goods: Everyday items like kitchen utensils, toys, and packaging materials.


Differences from Die Casting


While Shot Volume Injection Molding and die casting share similarities, such as the use of molds and high pressure, they differ primarily in the materials used and specific applications:


Materials:

Injection Molding: Utilizes thermoplastic polymers that melt and solidify repeatedly.

Die Casting: Uses metals such as aluminum, zinc, and magnesium that are melted and injected into molds.


Applications:

Injection Molding: Suitable for plastic parts with complex geometries and fine details.

Die Casting: Ideal for producing metal parts requiring high strength and durability.


Processing Temperatures:

Injection Molding: Operates at lower temperatures due to the melting points of plastics.

Die Casting: Requires higher temperatures to melt metals.


Tooling Costs:

Injection Molding: Typically has lower tooling costs compared to die casting due to the less abrasive nature of plastics.


Products Produced

Shot Volume Injection Molding can produce a wide variety of products, including but not limited to:

Automotive Parts: Engine components, interior and exterior trims.

Electronic Components: Circuit boards, enclosures, and switches.

Medical Devices: Syringes, vials, and diagnostic tools.

Consumer Products: Toys, household items, and packaging.

Industrial Components: Gears, valves, and fittings.


Injection molding is an efficient, precise manufacturing process used across a wide range of industries. Its ability to produce fine, consistent plastic parts makes it an integral part of applications ranging from automotive and electronics to medical devices and consumer goods.
