Prototype Sheet Metal Fabrication

What is Prototype Sheet Metal Fabrication?

Prototype Sheet Metal Fabrication is the process of creating preliminary versions or prototypes of metal parts and assemblies using sheet metal before they go into full-scale production. This process involves various techniques to cut, shape, join, and finish metal sheets to develop functional and testable parts.

Processes and Techniques

Cutting: Laser cutting, waterjet cutting, and plasma cutting are commonly used for precise and efficient sheet metal cutting.

Forming: Techniques such as bending, stamping, and deep drawing shape the metal into desired forms.

Joining: Methods like welding, riveting, and adhesive bonding are used to assemble parts.

Finishing: Surface treatments such as painting, powder coating, and anodizing improve appearance and resistance to corrosion.

Materials

Common Metals: Aluminum, steel, stainless steel, copper, and brass are frequently used due to their varying properties and applications.

Material Properties: Considerations include strength, ductility, conductivity, and resistance to corrosion and heat.

Cutting Techniques

Laser Cutting: Provides high precision and is ideal for intricate designs.

Waterjet Cutting: Uses a high-pressure stream of water and abrasive particles to cut through metal without generating heat.

Plasma Cutting: Employs an ionized gas to cut through thicker metal sheets.

Forming and Shaping

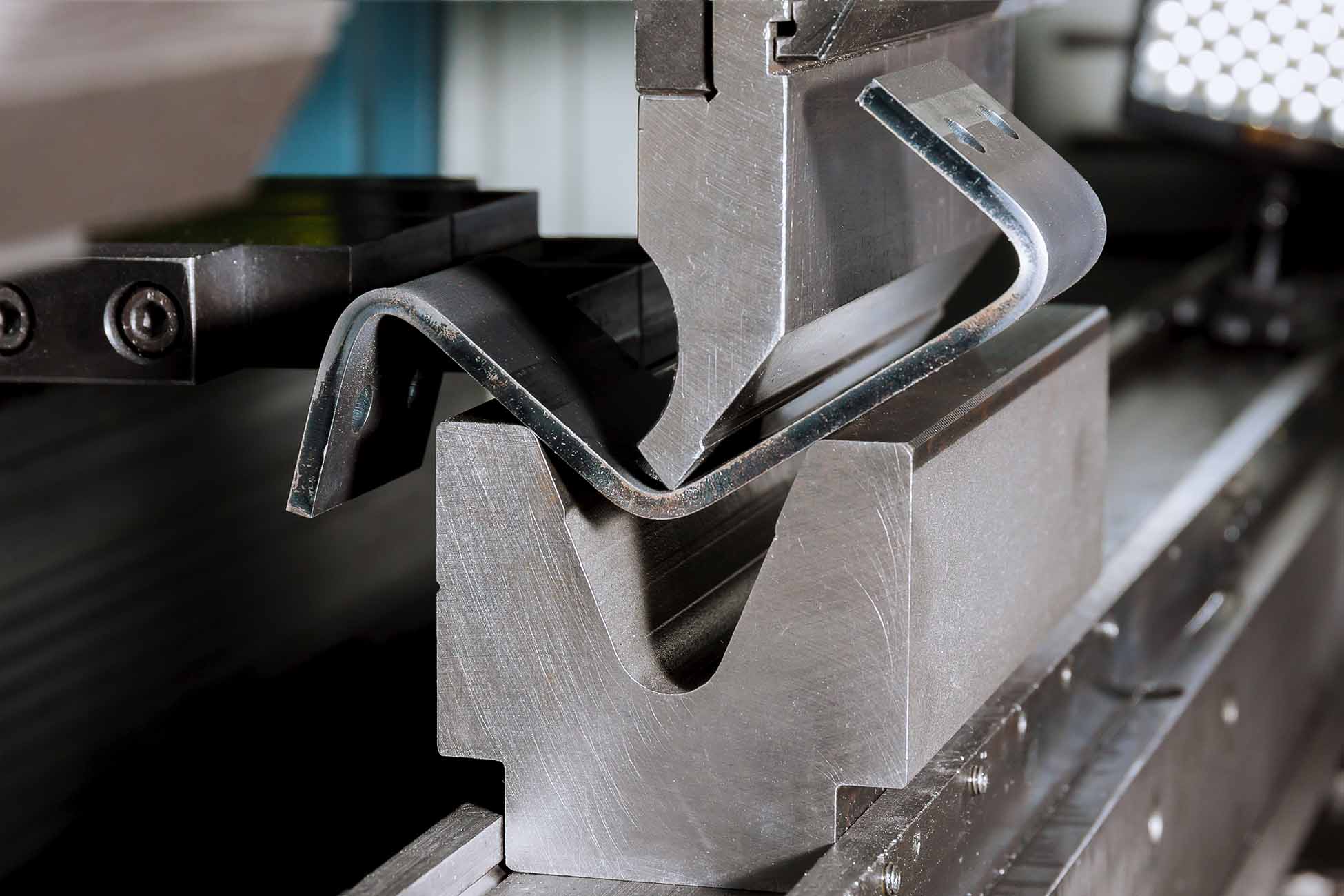

Bending: Using press brakes or roll forming to create angles and bends in the sheet metal.

Stamping: A process where a die is used to form shapes, cutouts, and holes in the sheet metal.

Deep Drawing: A method for forming deep, hollow shapes by stretching the metal over a die.

Joining and Assembly

Welding: Techniques like TIG, MIG, and spot welding are used to join metal components.

Riveting and Fastening: Mechanical fasteners such as rivets and screws are used for assembly.

Adhesive Bonding: Industrial adhesives provide strong, durable bonds without the need for mechanical fasteners.

Finishing Processes

Surface Treatment: Processes such as anodizing, electroplating, or powder coating to enhance corrosion resistance and aesthetic appeal.

Polishing and Deburring: Ensuring smooth surfaces and removing sharp edges or burrs resulting from cutting and forming.

Benefits of Prototype Sheet Metal Fabrication

Rapid Development: Enables quick iteration and testing of design concepts.

Cost-Effective: Reduces costs by identifying and addressing potential issues before mass production.

Customization: Allows for tailored Solutions to specific design requirements.

Functional Testing: Provides prototypes that can be tested in real-world conditions to ensure performance and reliability.

Applications

Automotive Industry: Development of new vehicle components and assemblies.

Aerospace: Prototyping of parts for aircraft and spacecraft.

Consumer Electronics: Creation of enclosures and chassis for electronic devices.

Medical Devices: Fabrication of prototypes for medical instruments and equipment.

Industrial Equipment: Development of components for machinery and industrial systems.

Challenges

Complexity in Design: High complexity in prototype designs can increase fabrication time and costs.

Material Limitations: Certain designs may require materials that are difficult to work with or expensive.

Precision Requirements: Achieving high precision and tight tolerances can be challenging and may require advanced equipment and techniques.

Prototype sheet metal manufacturing is an essential part of the product development cycle, creating fully functional and testable models before full production. By utilizing advanced manufacturing techniques and materials, Fair Shine industrial can develop high-quality prototypes that meet specific design and functional requirements.
