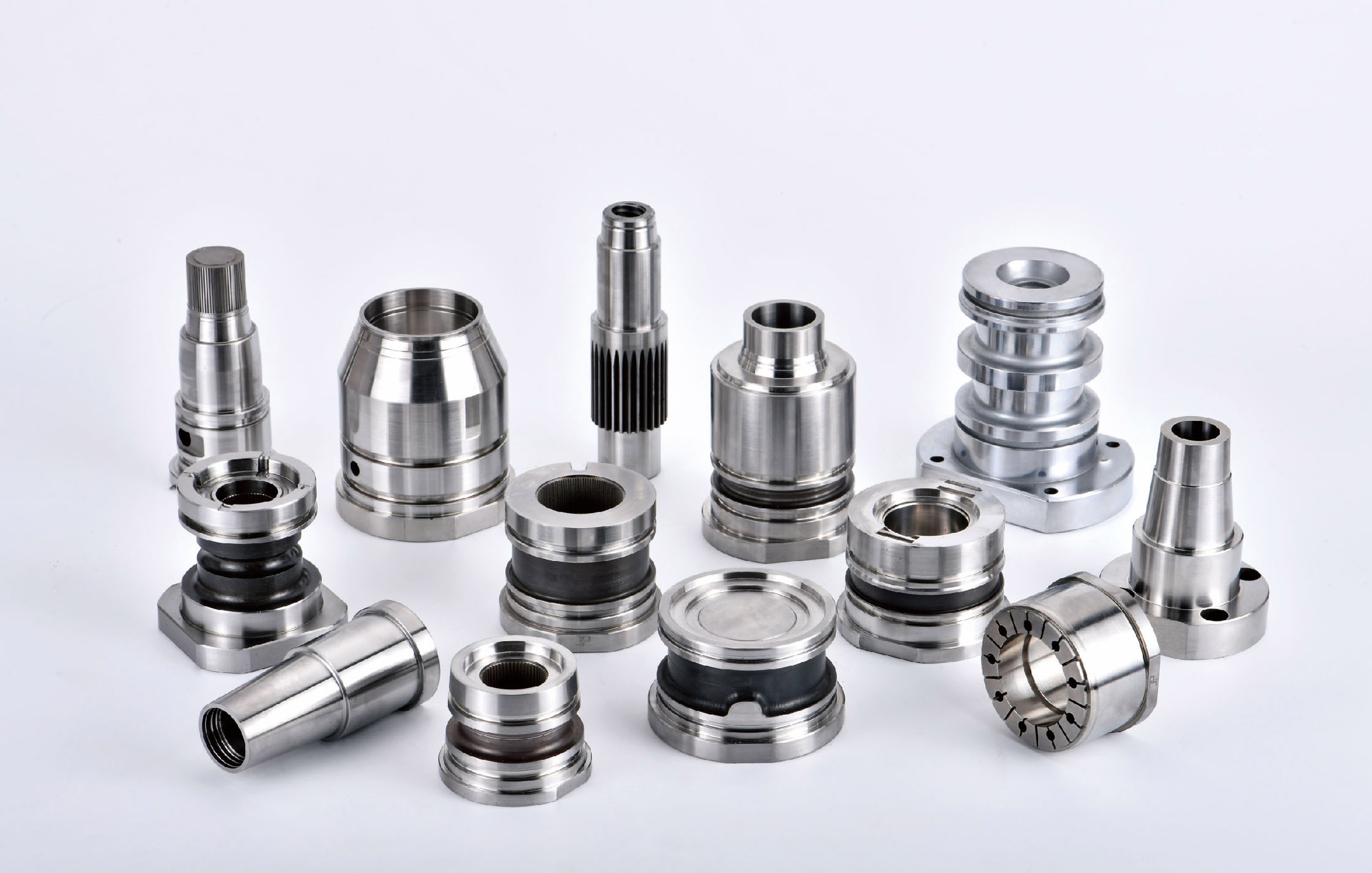

Precision mold accessories refers to the general name of metal accessories used exclusively in the mold industry for precision stamping molds, precision plastic molds or FA automation equipment.

Widely used in various manufacturing fields such as precision plastic molds, precision stamping molds, automobiles, electrical and aviation

1. Main features

01. Wear resistance

When the blank plastically degenerates in the precision mold cavity, it both flows and slides along the cavity surface, causing severe friction between the cavity surface and the blank, causing the mold to fail due to wear. Therefore, the wear resistance of the material is one of the most important properties of the mold.

02. Strong toughness

Most of the working conditions of precision molds are not good, and some often bear large impact loads, resulting in brittle fracture. In order to prevent precision mold parts from suddenly breaking during operation, precision molds must have high strength and toughness. The toughness of precision molds mainly depends on the carbon content, grain size and organizational state of the material.

03. High temperature performance

When the working temperature of precision molds is higher, the hardness and strength will decrease, leading to early wear or plastic deformation of the molds and failure. Therefore, precision mold materials should have high anti-tempering stability to ensure that the mold has high hardness and strength at working temperature.

04. Heat and cold fatigue resistance

Precision molds are in a state of repeated heating and cooling during the working process, which causes the surface of the cavity to be subjected to tension and pressure changes, causing surface cracks and peeling, increasing friction, hindering plastic deformation, and reducing dimensional accuracy, resulting in Mold failure. Thermal fatigue is one of the main forms of failure of hot work molds.

05. Corrosion resistance

When precision plastic molds are working, due to the presence of chlorine, fluorine and other elements in the plastic, highly corrosive gases such as HCI and HF are decomposed after heating, corroding the surface of the mold cavity, increasing its surface roughness, and aggravating wear and failure.

2. Precision mold accessories:

Punch needle, punch head, guide post, guide bushing, ejector pin, cylinder, steel ball sleeve, independent guide post, self-lubricating plate, self-lubricating guide bushing, non-lubricating guide bushing, non-lubricating slide plate, guide post assembly, etc.

3. Precision plastic mold accessories:

Single-section shooting tip, double-section shooting tip, double-section shooting tip, flat tip, flat tip, positioning column, square auxiliary device, cylinder, ejector pin, positioning bead, resin shutter, clamping buckle, plastic mold guide bushing , plastic mold guide posts, limit clamps, secondary ejection, reset mechanism, mold counter, auxiliary device, positioning parts, cooling parts, steel ball sleeves, inclined ejection device, air cap, tie rod, return pin, spring, etc.

4. Precision hardware mold accessories:

Sliding guide pillar assembly for mold base, ball guide pillar assembly for mold base, floating pin, float pin, positioning pin, self-lubricating guide bush, inner guide pillar assembly, punch, punch mold, concave mold, discharge inlet , Pins, guide posts, guide sleeves, guide pins, stop screws, hexagonal screws, etc.

5. Precision stamping mold accessories:

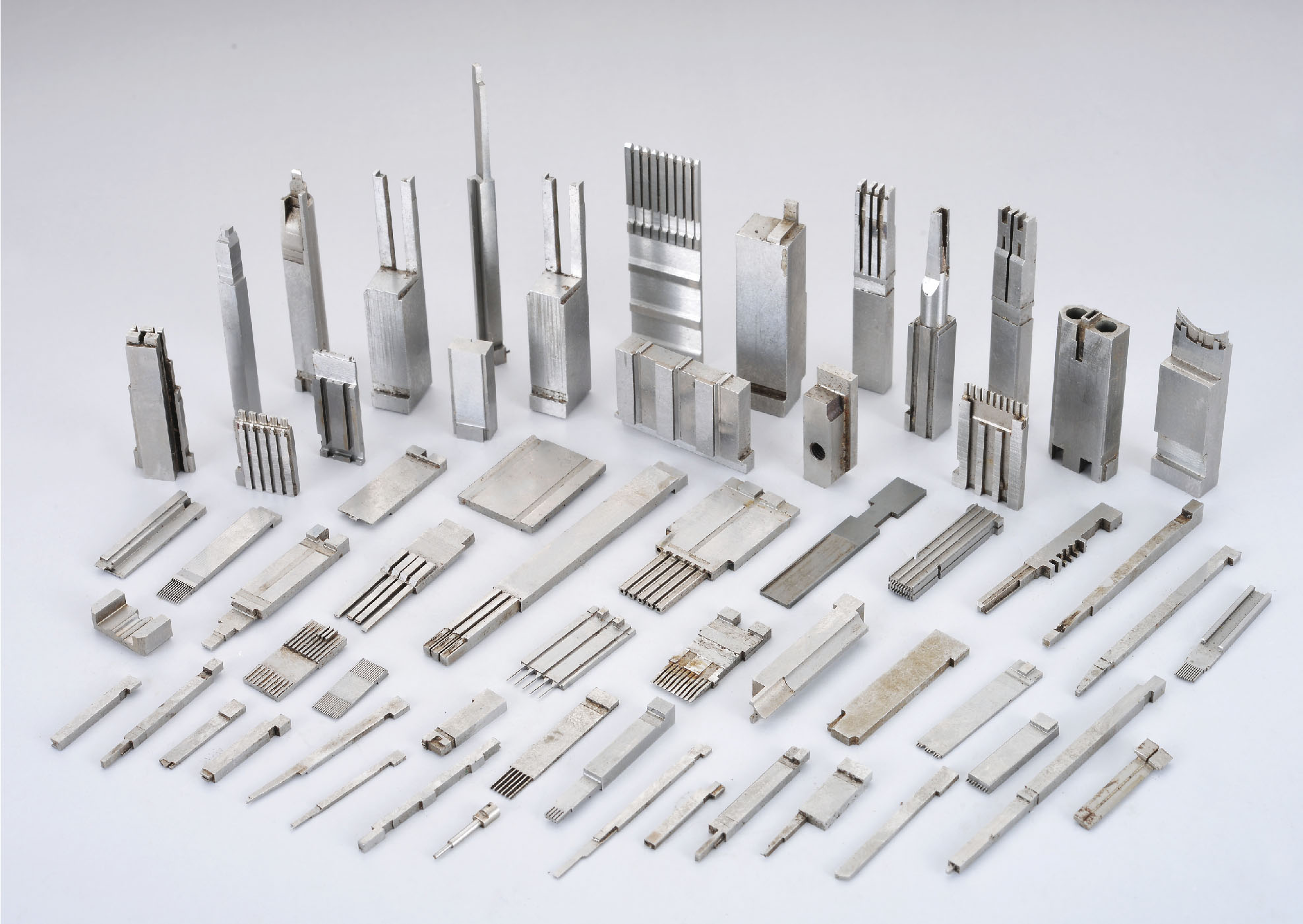

Punch (punch), guide pin, punch guide bushing, die, special-shaped punch, special-shaped die, tungsten steel punch, tungsten steel die, tungsten steel special-shaped punch, carbide square punch, Punch die for forming processing, stamping die fixed block, steel ball bushing, guide pillar and guide bush for mold base, independent guide pillar assembly, mold guide parts, self-lubricating slide plate, material guide, related parts for ejection, inclined wedge And related parts, hooks, mold storage parts, parts for inspection fixtures, mold coil springs, nitrogen springs, polyurethane springs, etc.

6. FA automation machinery accessories mainly include:

Guide shaft support, fixed ring, linear bearing, ball guide shaft, linear guide rail, linear slide rail, cable protection chain, ball screw, trapezoidal screw, sliding screw, rotating shaft, bearing seat, synchronous toothed belt, flat belt , round belts, pulleys, gears, conveyors, positioning pins, bushings for clamps, positioning parts, lenses, LED illuminators, sensors, probes, support clamps, round bars, resin bars, transparent resin, engineering plastics Plate, sheet metal processing products, washers, gaskets, screws, nuts, small parts, springs, nozzles, cylinder-related parts, connection parts, heaters, heat shields, aluminum alloy profiles, high-efficiency particulate filters, factory profiles , flat plate, adjustment block, section steel, reinforcement, safety fence, etc.

7. From the perspective of technology, it can be classified into standard series and non-standard series:

1. Standard series: Standard parts such as thimbles, cylinders, side locks, limit clips, etc. are generally called standard parts.

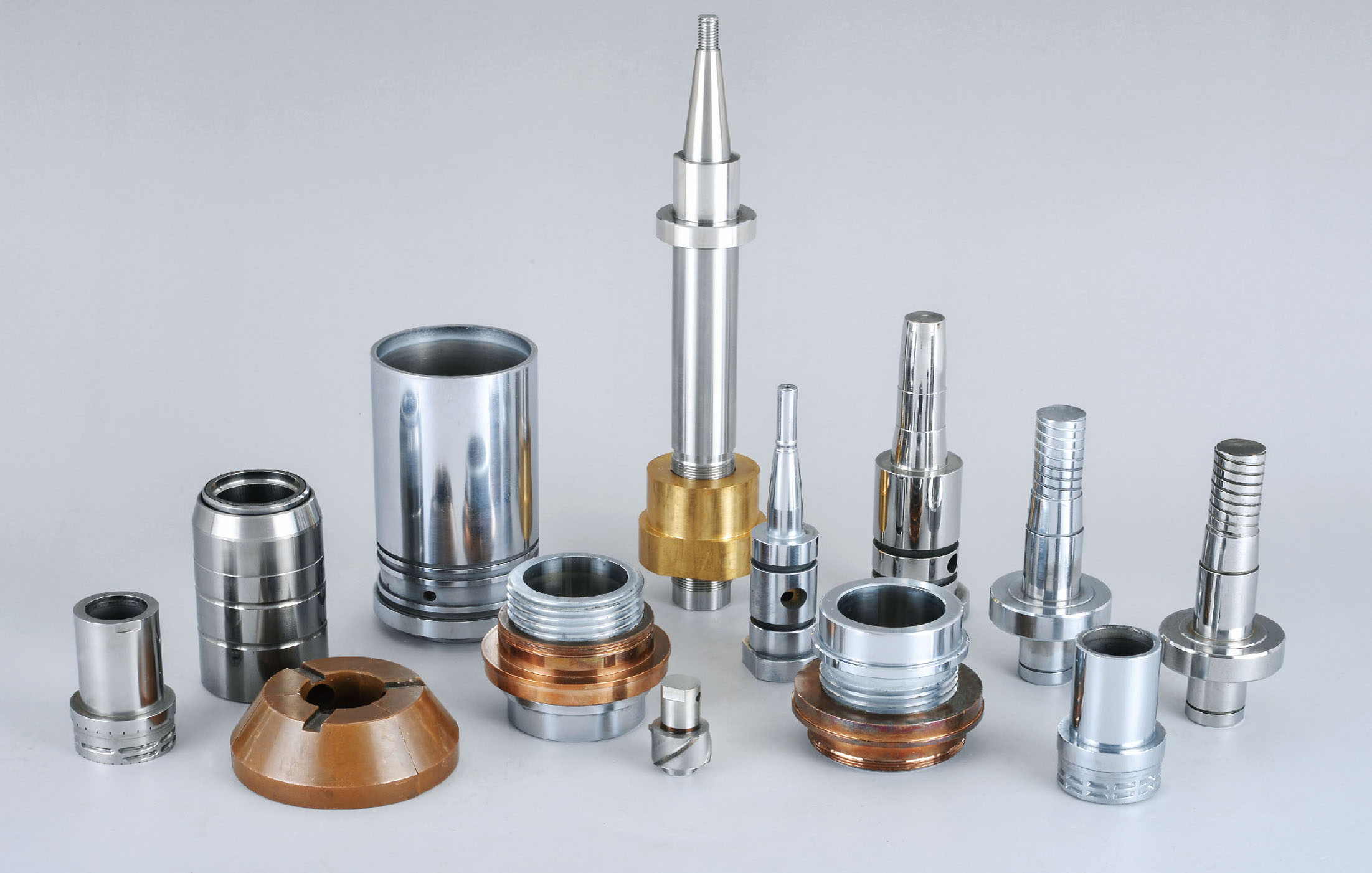

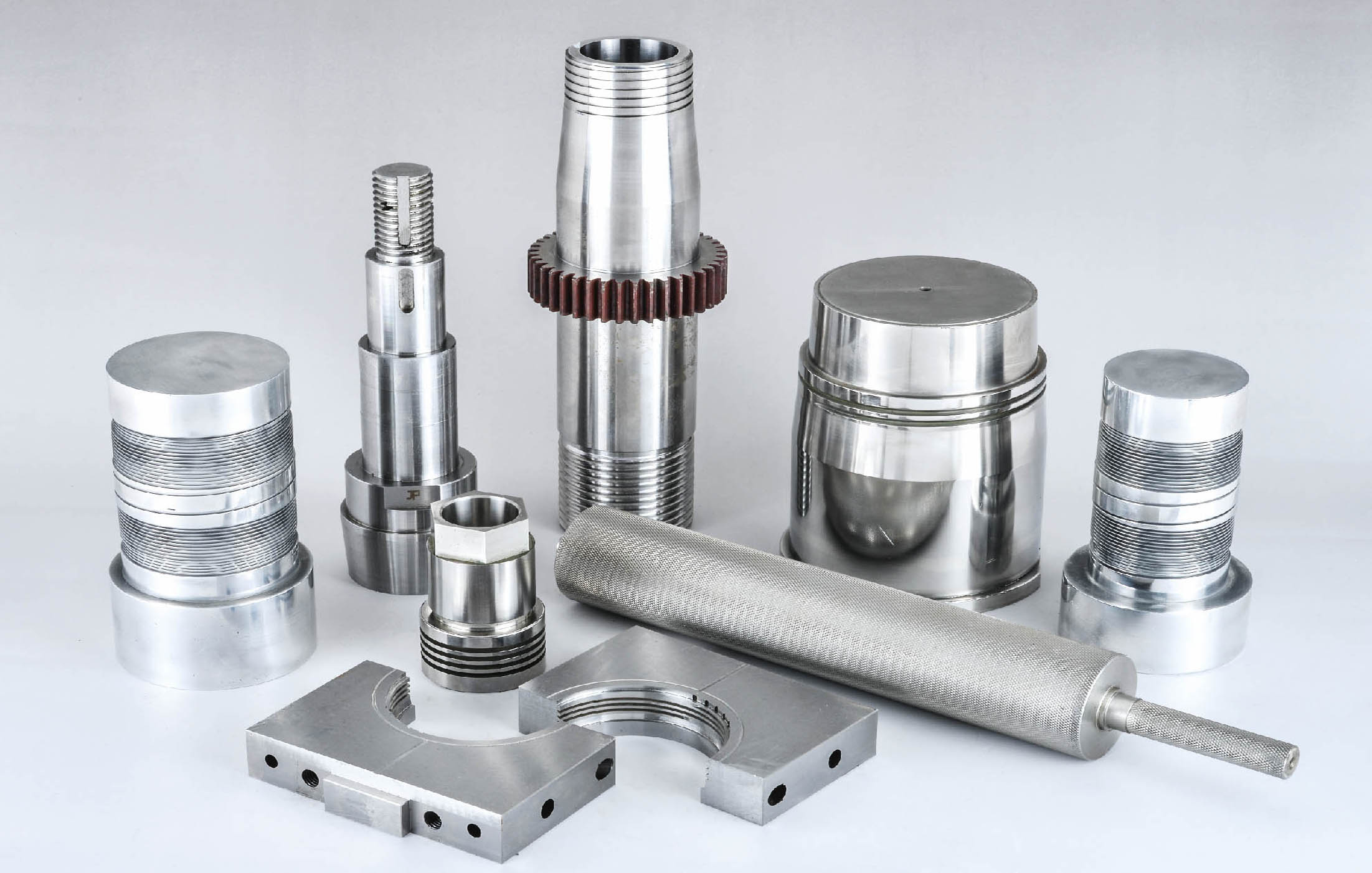

2. Non-standard series: syringe core, needle core, worm gear, sprocket, precision copper gear, screw electrode, pen model core, cosmetic parts, precision gear rack, precision round tip, mold needle, molding insert , beryllium copper core, etc.

This is true for management, and even more so for production, especially the production of precision stamping and drawing dies, which are important in the production of precision parts. The mold size requirements are relatively strict. Therefore, in the design of precision stamping and drawing dies, The following design requirements must be met during the process:

1. The designed precision stamping and drawing molds, while ensuring normal use, try to keep the dimensional accuracy level and surface roughness level requirements as low as possible, which is conducive to product interchange, reduces waste, and ensures stable product quality.

2. The designed precision stamping and drawing mold must meet the product usage and technical performance, and be easy to assemble and repair.

3. The designed precision stamping and drawing mold must be conducive to improving the utilization rate of metal materials, reducing the variety and specifications of materials, reducing material consumption as much as possible, using low-priced materials where possible, and making parts as precise as possible Waste-free and low-waste blanking

4. The designed precision stamping and drawing mold should be conducive to processing using existing equipment, process equipment and processes as much as possible, and should be conducive to extending the service life of the stamping die.

5. The designed precision stamping and drawing mold must have a simple shape and reasonable structure to facilitate simplifying the mold structure and simplifying the number of processes, that is, using the least and simplest stamping process to complete the processing of the entire part, reducing the need for other processing methods, and It is beneficial to stamping operations and facilitates the organization of mechanized and automated production to improve labor productivity.

Our Services

1. Specialized in precision mold part ,inquiries will get highly attention and be prompt response.(within 24 hours).

2. Advanced facilities and experienced engineers, rich experience in mold parts.

3. Guaranteed quality, superior material quality compared to all other.

4. Customer oriented, efficient solution to control the cost for our client.

5. One-stop service, any questions can be solved at the first time by us.

6. Each part has been got 100% inspection before shipment.

Our adavanges

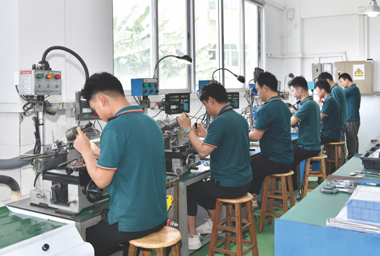

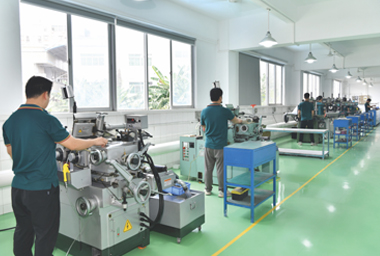

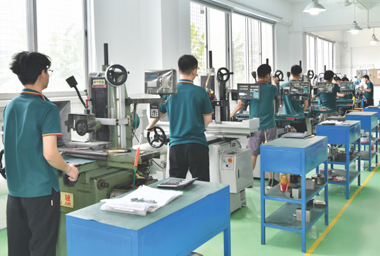

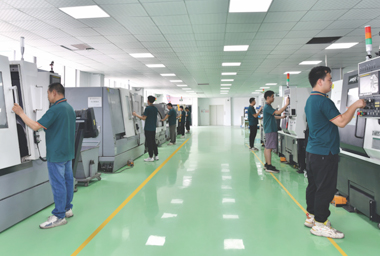

1. Clean and tidy workshop.

2.Strick and serious manangement, skilled and expericenced technicians.

3. Various raw material(imported and Chinese) to meet different needs of customers.

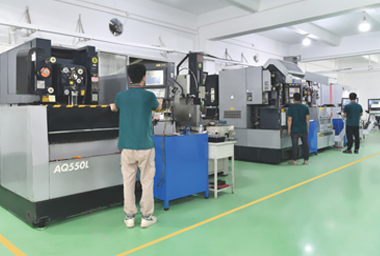

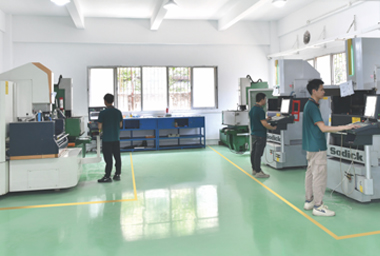

4.Equipment of high pricision.( Surface grinding,Sodick Wire-cutting.drilling machine).

5.The QC go along with all the production processes in our factory.

6. You can use English or Japanese for cummunication

Payment Terms

T/T,Paypal,Western Union,50% deposit, balance before shipment is available

Package:PE bag with anticorrosive oil,foaming film with carton,or wooden box according to customer's requirement.

Delivery:Delivery time is usually 7-15 working days for type of ejector pin,specific time is according to quantity.

Shipping:We ship using express such as DHL, UPS, FEDEX etc. or according

to customer's requirement . It takes about 3-5 days to arrive your front

door, and proof of shippments are provided with a shipping or tracking

number. And we ship by occean shippment for larger quantity items,

it will be economic for customers.
