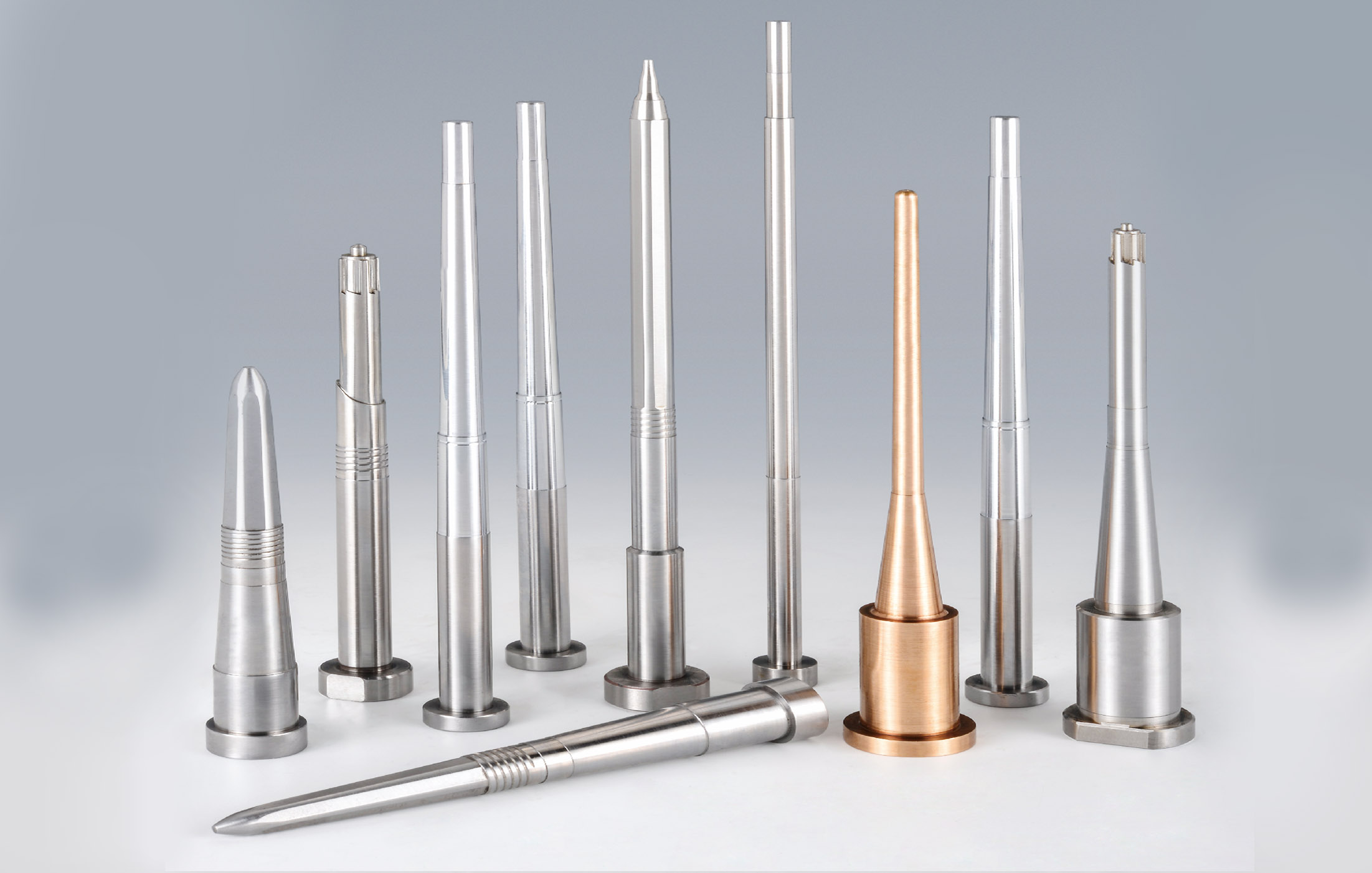

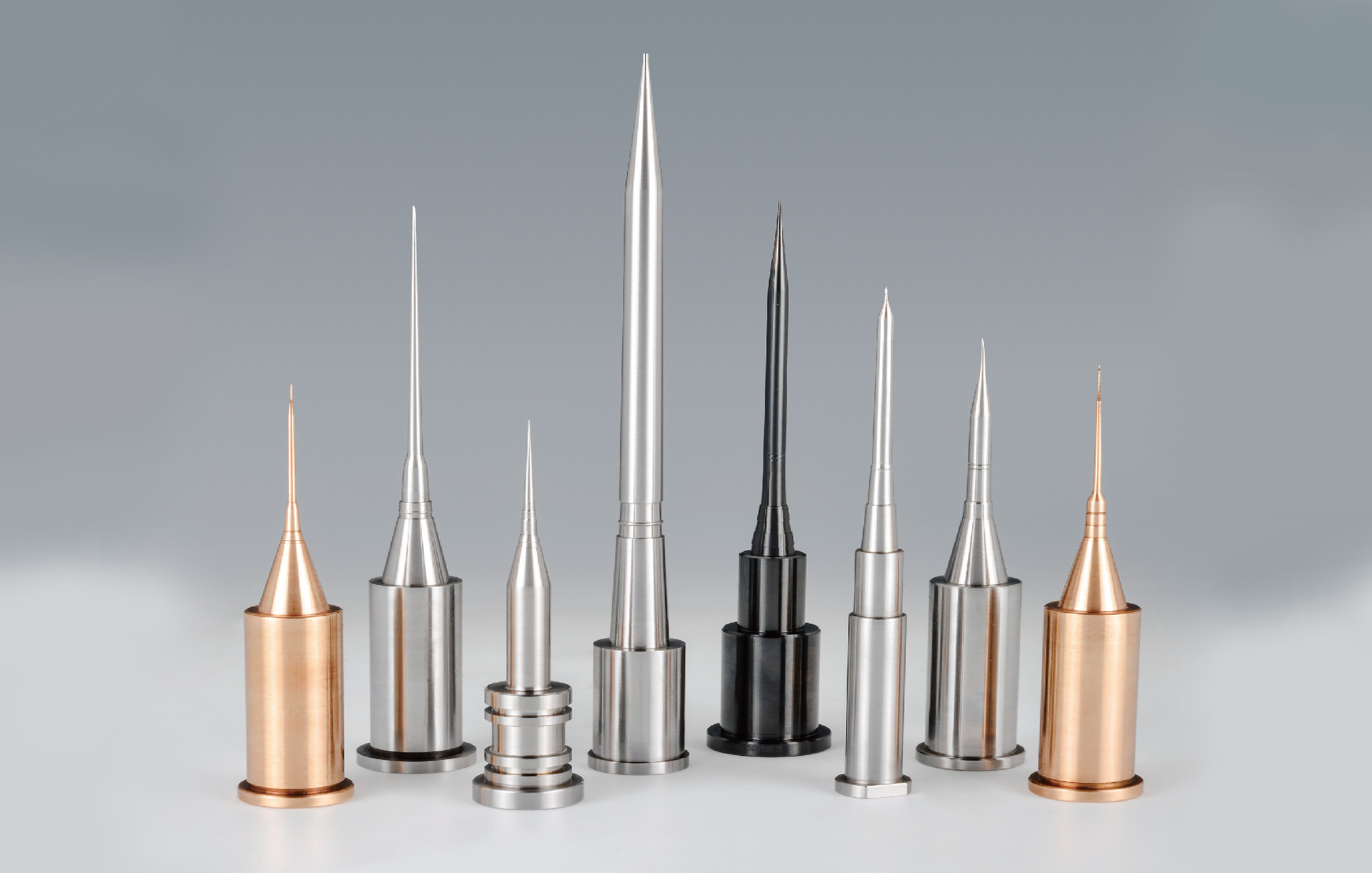

Pen mould core | |
Product Name | Pen mould core |
Brand Name | Fair Shine |
Place of Origin | Dongguan, Guangdong, China |
Specification | Customized on Request |
Customization | Material, size, shape, convex and concave marking, coating, laser engraving mark and packing are all customizable. |
Product Material | Carbide.ASP23 Vanadis.CPMRTXM4.SKD11SKD61HSSA2M2D2SUJ2.S45C.ect |
Standard | DIN ANSI BS JIS |
Tolerance | ±0.002mm |
Surface Treatment | TiCNTiN,Aitain,Ticrnnitriding Black oxygened Black coating etc available |
Polishness | Close to Ra0.2 Hardness Depends on material(HRC60~94) |
Hardness | Depends on material(HRC60~94) |
Shaping Mode | Grinding, wire cutting, EDM, cnc machining, cnc turning, cnc Milling |
Application | Machinery Parts and Molds |
Dongguan Huixiang Mold Technology Co., Ltd. has been engaged in manufacturing for 14 years, mainly engaged in hardware product manufacturing, mold manufacturing, and mechanical parts and component processing.
Manufacturing of automobile parts and accessories; manufacturing of general parts; sales of hardware products, mold accessories, mechanical parts, and spare parts; sales of automobile parts and accessories; sales of instruments and meters; sales of plastic products; technical services, technology development, and hardware product research and development.
We have successfully passed the LS09001:2015 quality management system certification, which shows that we can provide the most professional services to internal and external customers and help us become a world-class supply chain service provider. The company will adhere to the service tenet of "sincere cooperation, quality first, credibility first" and sincerely hopes to cooperate with our customers to create a win-win situation.
1. Pen making/cosmetics/packaging products: pen model refills/pen cap accessories/pen refill thread inserts/lipstick series/spray molds;
2. Medical packaging equipment products: syringe core/syringe core (combination (pieces)/test tube core/medical packaging bottle cap screw core/drawing cover core and push plate cover; front and rear mold cores such as upper and lower caps of mascara;
3. Optoelectronic/digital electronic products: precision optoelectronic shaft/precision insert Sub/core/busting/precision positioning, etc., the accuracy tolerance is generally controlled within 0.002-0.005, all with test reports for customer inspection;
4. Home appliances, automotive machinery products: self-lubricating wear-resistant blocks (high-strength brass Add graphite)/No oil self-lubricating guide bushing, movable core assembly (inclined top seat)/guide column assistant/positioning column, etc.;
5. Bushings, die inserts, lower molds, CNC Customized standard and non-standard precision stamping mold accessories such as concave molds, special-shaped bushings, contour sleeves, floating pins, cross pin floating pins, guide lifting pins, tungsten steel punches, etc.;
6. Guide pins, positioning pins, stoppers Standard and non-standard customization of high columns, limit columns, etc.;
7. Non-standard customization of SKH51 thimbles, SKD61 thimbles, supporting pins, flat thimbles, shooting pins, cylinder pins, push tubes, imported material thimbles and cylinder cylinders;
8 . Guide post guide bushing, GP auxiliary guide post, GP auxiliary guide bushing, SRP ball guide post guide bush, SGP sliding guide post guide bush, discharge plate guide post guide bush, TRP detachable guide post guide bush, independent guide post , non-standard guide posts and bushings and other cold stamping mold accessories;
In-depth analysis of pen model core technology: the complete chain from design to application
1. Core technical parameters and material selection logic
Material Matching Matrix
Application scenarios Recommended materials Key Performance Cost Level
High-gloss pen rod S136H (mirror steel) Ra≤0.02μm, strong corrosion resistance High
Complex structural parts NAK80 (pre-hard steel) Good processability, deformation capacity<0.03mm middle="">
Wear-resistant screw area ASP60 (powder high-speed steel) HRC68-70, wear resistance increased by 300% Extremely high
2. Innovative solution for intelligent cooling system
Topological optimization waterway design
simulation tool: Use Moldex3D to simulate heat flow to generate a follow-up waterway (cooling efficiency is improved by 40%).
Structural innovation:
Spiral waterway (8mm spacing, reducing temperature difference gradient). Fountain-type water outlet (avoid blind spots, mold temperature uniformity ±1℃).
Dynamic temperature control strategy
Sensor deployment: Embed K-type thermocouple (accuracy ±0.5℃) in the core head.
Control algorithm: PID+fuzzy logic, automatically adjust the water flow rate according to the thickness of the plastic part (energy saving 25%).
3. Database of failure mode and prevention plan
Failure mode Preventive measures 3D optical profiler (roughness detection)
Screw tooth strain Insert pre-plated CrN (thickness 2μm) Friction and wear tester (5000 cycles)
Plastic parts sticking mold Surface DLC coating (coefficiency of friction<0.05)<>
Uneven cooling leads to deformation Zoned temperature control system (temperature difference<3℃) infrared="" thermal="" imager="">
4. Industry application benchmark cases
Luxury pen
Technical challenge: 0.3mm decorative ring insert (laser welding positioning to avoid deformation of plastic parts).
Solution: Use thermal expansion coefficient matching technology (copper insert + PC plastic parts, ΔT<5ppm>
Ultrasonic assisted injection molding (wire strength >25MPa).
Medical pen
Special requirements: Biocompatible, no blind spot cleaning.
Innovative design: titanium alloy core (TC4, anodized treatment).
Integrated flow channel (avoiding residues of medicine and comply with ISO10993 standard).
Environmentally friendly biodegradable pen
Material breakthrough: PLA+ bamboo fiber composite material.
Process adaptation:
Mirror polishing (Ra≤0.03μm, reducing mold release resistance).
Micro-pore exhaust design (diameter φ0.05mm, preventing burning of gas).
5. Future technology trends
Additive Manufacturing (3D Printing)
Advantages: Complex runners are integrated to reduce assembly errors.
Case: SLM printing Inconel718 core (temperature resistant to 1200℃, used for metal injection molding).
Digital Twin Technology
Application: Optimize injection molding parameters through real-time feedback of IoT sensors (shortening debugging cycle by 50%)
Sustainable design
Direction: Removable and replaceable core (extend mold life by 3-5 times), and use recycled steel (reduce carbon emissions by 40%).
6. Economical core design guide
Cost control strategy:
Standardized inserts (reduce customization costs).
Segmented cooling (reduces processing difficulty).
Quick change plan:
Magnetic positioning + pneumatic locking (model replacement time < 5 minutes).
Through deeply integrating materials science, precision machining and intelligent technology, the pen model core is evolving from a single functional component to a high performance, long life and intelligence, providing core support for the high-end manufacturing field.
