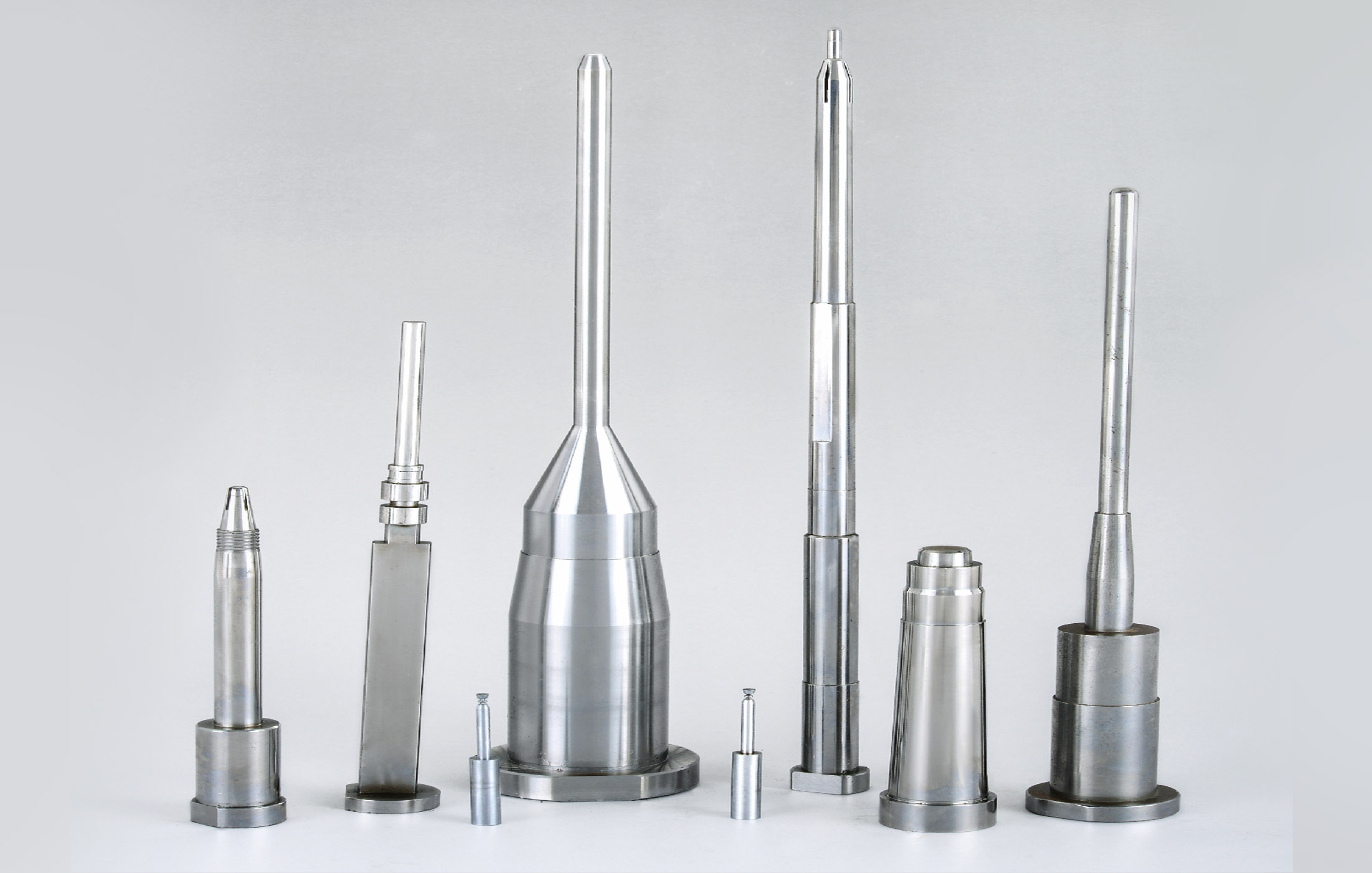

Push sleeve mold accessories | |
Product Name | Push sleeve mold accessories |
Brand Name | Fair Shine |
Place of Origin | Dongguan, Guangdong, China |
Specification | Customized on Request |
Customization | Material, size, shape, convex and concave marking, coating, laser engraving mark and packing are all customizable. |
Product Material | Carbide.ASP23 Vanadis.CPMRTXM4.SKD11SKD61HSSA2M2D2SUJ2.S45C.ect |
Standard | DIN ANSI BS JIS |
Tolerance | ±0.002mm |
Surface Treatment | TiCNTiN,Aitain,Ticrnnitriding Black oxygened Black coating etc available |
Polishness | Close to Ra0.2 Hardness Depends on material(HRC50~64) |
Hardness | Depends on material(HRC50~64) |
Shaping Mode | Grinding, wire cutting, EDM, cnc machining, cnc turning, cnc Milling |
Application | Machinery Parts and Molds |

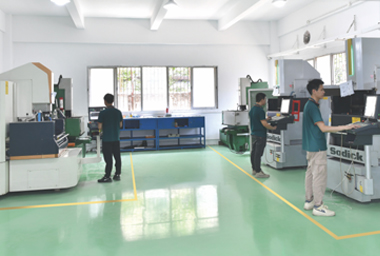

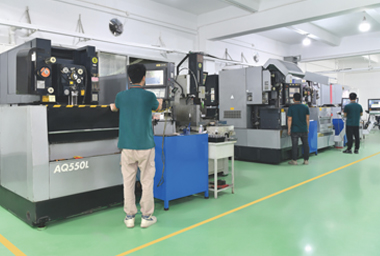

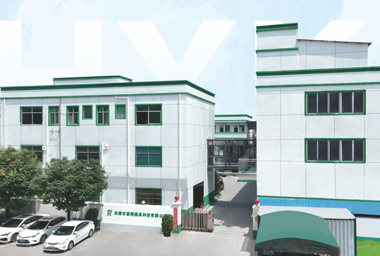

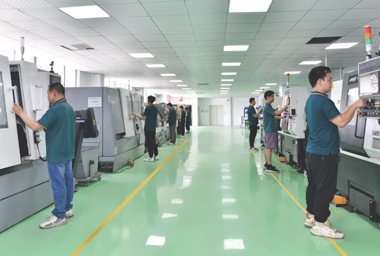

Dongguan Huixiang Mold Technology Co., Ltd. was established in 2013. It is located in the factory area at No. 12, Yuwumusong 4th Street, Dongcheng District, Dongguan. It covers an area of 5,000 square meters and undertakes various non-standard parts processing and customization.
Plastic molds, metal stamping molds, die-casting molds, jigs and precision automation machinery auto parts and other fields.

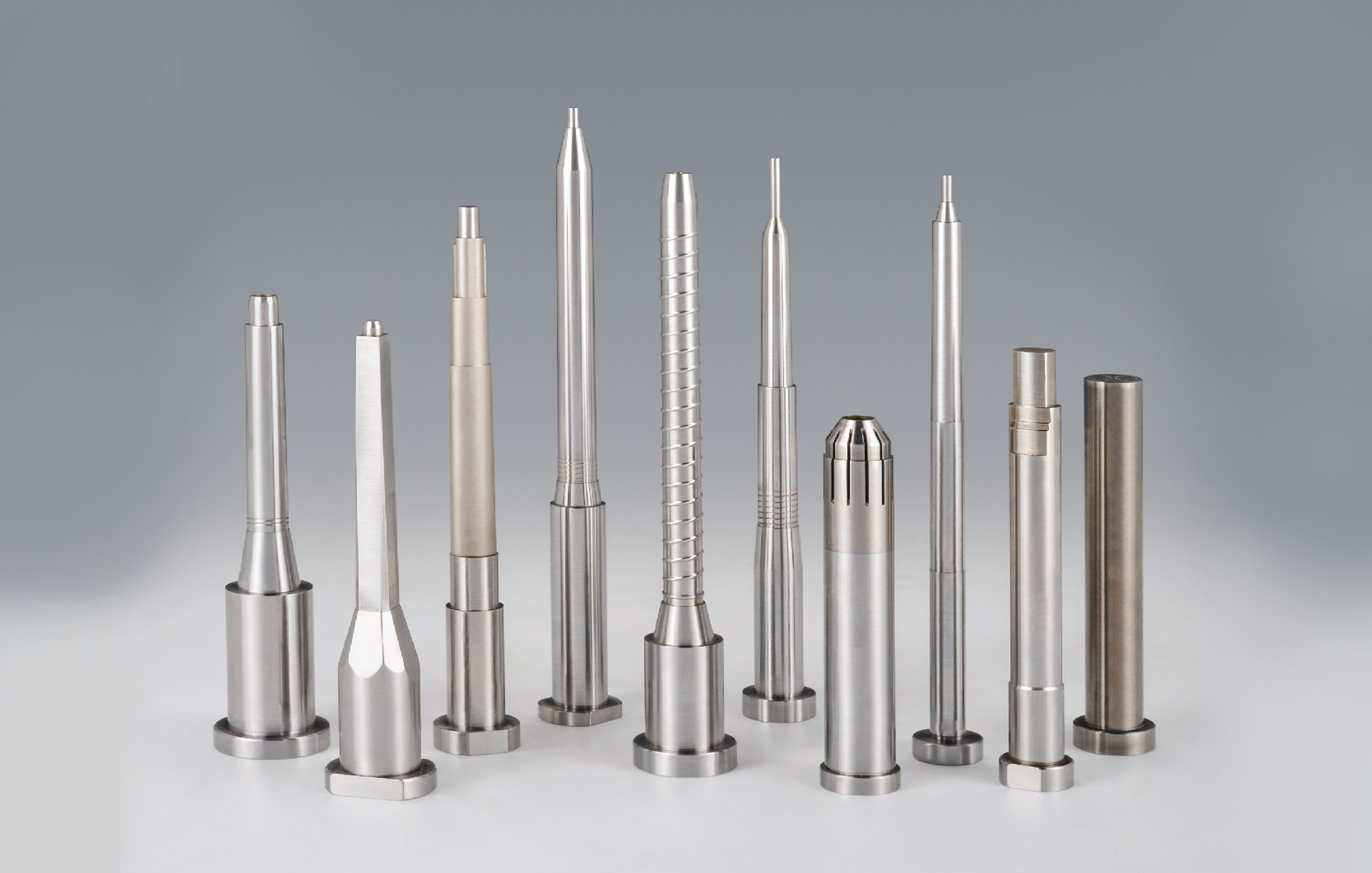

The main production includes: parent punches, forming punches, carbide die punches, SKH51 SKD11 punches, precision mold cores, mold cores, pen model cores, screw cores, precision screw inserts , non-standard cylinders, ejector pins, supporting pins, guide posts, guide bushes, insert pins, inserts, die, electrodes, non-standard and other non-standard mold parts.
1. Pen making/cosmetics/packaging products: pen model refills/pen cap accessories/pen refill thread inserts/lipstick series/spray molds;
2. Medical packaging equipment products: syringe core/syringe core (combination (pieces)/test tube core/medical packaging bottle cap screw core/drawing cover core and push plate cover; front and rear mold cores such as upper and lower caps of mascara;
3. Optoelectronic/digital electronic products: precision optoelectronic shaft/precision insert Sub/core/busting/precision positioning, etc., the accuracy tolerance is generally controlled within 0.002-0.005, all with test reports for customer inspection;
4. Home appliances, automotive machinery products: self-lubricating wear-resistant blocks (high-strength brass Add graphite)/No oil self-lubricating guide bushing, movable core assembly (inclined top seat)/guide column assistant/positioning column, etc.;
5. Precision stamping mold accessories: non-standard punch needles, punch heads, punch needles, tungsten Steel punch, CNC punch, carbide punch, ASP-23 punch, powder high-speed steel punch, SKH51 punch, SKD11 punch, DC53 punch, double-pin punch, double-pin special-shaped punch, Customized guide punches, guide pins, turning punches, forming punches, elliptical punches, square punches, hexagonal punches, special-shaped punches, etc.;
6. Bushings, die inserts, lower molds, CNC Customized standard and non-standard precision stamping mold accessories such as concave molds, special-shaped bushings, contour sleeves, floating pins, cross pin floating pins, guide lifting pins, tungsten steel punches, etc.;
7. Guide pins, positioning pins, stoppers Standard and non-standard customization of high columns, limit columns, etc.;
8. Non-standard customization of SKH51 thimbles, SKD61 thimbles, supporting pins, flat thimbles, shooting pins, cylinder pins, push tubes, imported material thimbles and cylinder cylinders;
Pen model core: Analysis of key technologies for precision machining and mold design
1. Core functions and design principles of core
Functional positioning:
Complex inner surfaces such as ink pipe grooves, threaded structures, pen tip fixing holes, etc.
Match with the cavity to control the dimensional accuracy of the plastic parts (tolerance ≤±0.02mm).
Design points:
Material selection:
Pre-hardened steel (such as NAK80, HRC38-42, suitable for complex structures).
Mirror steel (S136H, HRC58-62, suitable for high-gloss needs).
Structural adaptation:
Demolding slope: 1°-3° (adjusted according to the shrinkage rate of the plastic part material).
Cooling waterway: 3D follow-up waterway (distance ≤20mm, improving cooling efficiency by 30%).
Insert design:
Pen tip metal insert (H7/h6 interference fit, anti-rotating).
Decorative ring inserts (laser welding positioning to avoid deformation of plastic parts).
2. The entire process of processing technology
01. Rough machining (5-axis CNC milling)
Target: Remove 80% of the margin and leave 0.5mm finishing margin.
Parameters: Feed speed: 0.3mm/rev (avoid vibration).
Tool: φ20mm integral cemented carbide milling cutter (4 edges, spiral angle 45°).
02. Heat treatment
Vacuum quenching:
Insulated at 1050℃ for 1.5 hours, cooled by nitrogen (deformation amount<0.03mm).>
Deep cold treatment: Soak in liquid nitrogen (-196℃×2 hours) to improve material stability.
03. Finishing (slow-wire-moving + EDM)
Slow-moving wire cutting:
0.2mm brass wire, surface roughness Ra≤0.8μm.
Electric spark processing:
micro-pore processing (φ0.3mm nozzle hole, depth diameter ratio 10:1).
04. Mirror polishing
Process route:
Diamond cast polishing (particle size 0.5μm) → Ultrasonic grinding (Ra≤0.02μm).
Detection:
A white light interferometer (ZYGO NewView 9000) detects surface quality.
05. Coating treatment
PVD coating:
CrN+DLC composite coating (thickness 3μm, friction coefficient<0.08).>
Laser cladding:
local reinforcement (such as thread area, hardness HV1200).
3. Key technological innovation points
Microstructure processing:
Leather etching (depth 0.05mm, anti-slip).
Microlens array (for stylus, diameter φ0.5mm).
Intelligent cooling system:
Embedded temperature sensor (real-time monitoring of mold temperature).
Pulse cooling technology (40% water saving, shortening molding cycle).
Modular design:
Quickly change the core (magnetic positioning, replacement is completed in 30 seconds).
4. Failure mode and solution
Question Type Phenomenon Causes Solution
Wear Surface scratches (>Ra0.4μm) Coating falls off Using DLC+TiAlN multi-layer coating
Deformation Core bending (>0.05mm) Improper heat treatment Increased aging treatment (200℃×12h)
Sticky mold Remaining plastic parts Inadequate polishing Nano-scale polishing (Ra≤0.01μm)
fracture Insert fall off Insufficient interference Use the thermal sleeve process instead (temperature difference of 50℃ assembly)
5. Quality inspection and lifespan management
Precision detection: Industrial CT scan (detect internal defects, resolution 5μm).
Blu-ray 3D scanner (compared with CAD model, deviation<0.01mm).<>
Life expectation:
Based on the number of injection moldings (usually >500,000 times) and surface roughness attenuation model.
Maintenance strategy:
Regular nitriding treatment (restores surface hardness).
Laser cladding repair (local damage area).
6. Typical application scenarios
High-end stylus:
Integrated silicone conductive contacts (core EDM processing 0.1mm gap).
Environmentally friendly and biodegradable pen:
Special high-gloss core for PLA materials (polished to Ra0.02μm).
Medical pen:
Titanium alloy insert (biocompatibility, electrolytic polished after CNC processing).
Through the integration of materials, processes and intelligent technology, the pen model core can achieve a leap from μ-level accuracy to millions of life, meeting the extreme needs of consumer electronics, medical care and other fields.
Our Services
1. Specialized in precision mold part ,inquiries will get highly attention and be prompt response.(within 24 hours).
2. Advanced facilities and experienced engineers, rich experience in mold parts.
3. Guaranteed quality, superior material quality compared to all other.
4. Customer oriented, efficient solution to control the cost for our client.
5. One-stop service, any questions can be solved at the first time by us.
6. Each part has been got 100% inspection before shipment.
Our adavanges
1. Clean and tidy workshop.
2.Strick and serious manangement, skilled and expericenced technicians.
3. Various raw material(imported and Chinese) to meet different needs of customers.

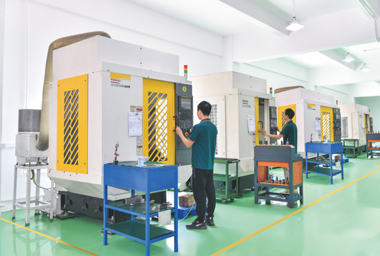

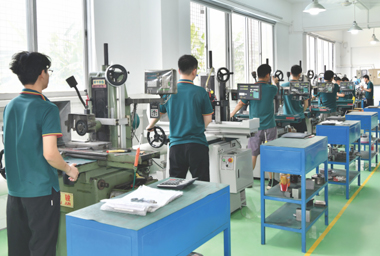

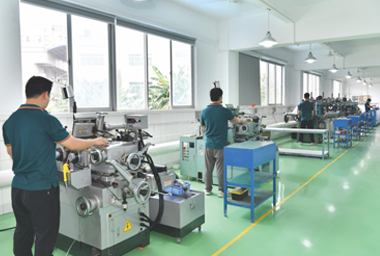

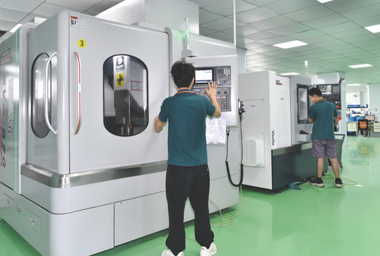

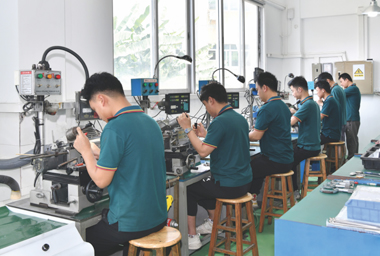

4.Equipment of high pricision.( Surface grinding,Sodick Wire-cutting.drilling machine).

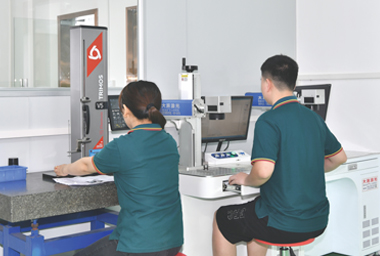

5.The QC go along with all the production processes in our factory.
6. You can use English or Japanese for cummunication
Payment Terms
T/T,Paypal,Western Union,50% deposit, balance before shipment is available
Package:PE bag with anticorrosive oil,foaming film with carton,or wooden box according to customer's requirement.
Delivery:Delivery time is usually 7-15 working days for type of ejector pin,specific time is according to quantity.
Shipping:We ship using express such as DHL, UPS, FEDEX etc. or according
to customer's requirement . It takes about 3-5 days to arrive your front
door, and proof of shippments are provided with a shipping or tracking
number. And we ship by occean shippment for larger quantity items,
it will be economic for customers.
